Diagram’s & Pictorial’s

This is a general guide to fabricating our discontinued expansion tank that fits our 3D printed bracket(s) design. It is assumed that if you are using this guide you have a…

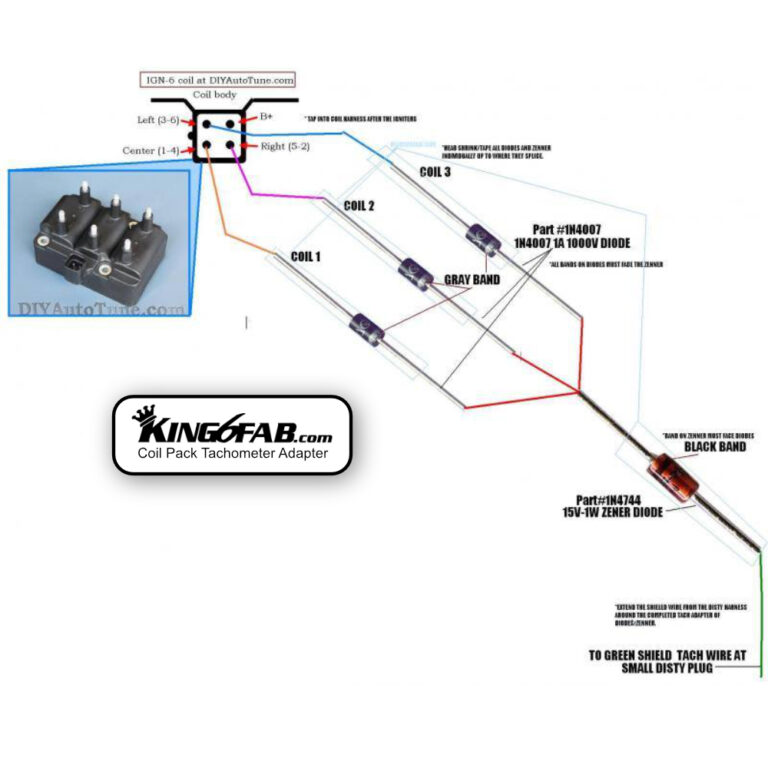

The below pictorial is all the diodes needed and position to wire them to create a tachometer adapter for the stock dashboard tachometer when using a coil pack ignition.

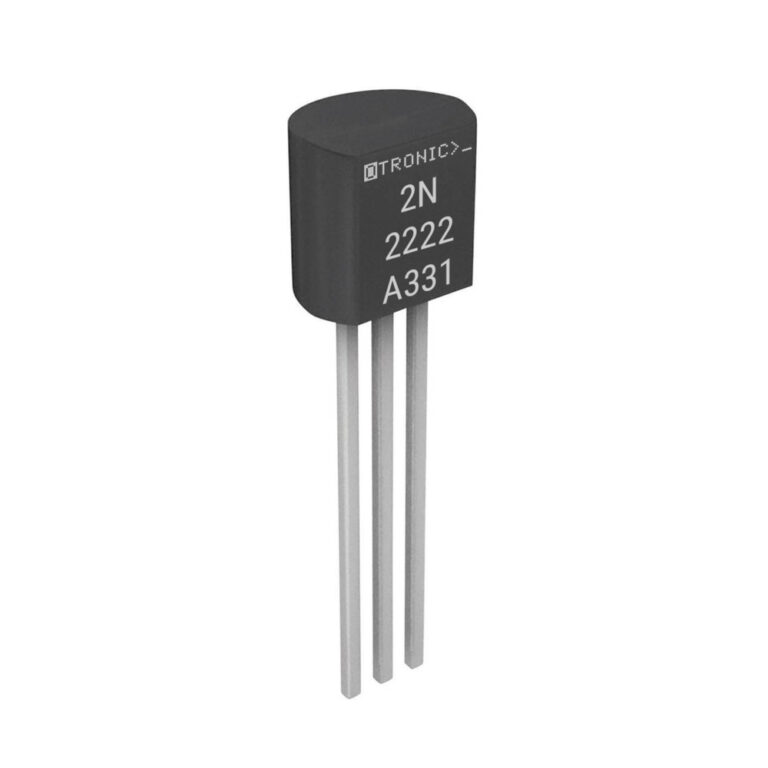

A simplified wiring pictorial for rigging up a transistor to use as a low voltage on & off switch for 12 volt electrical.
