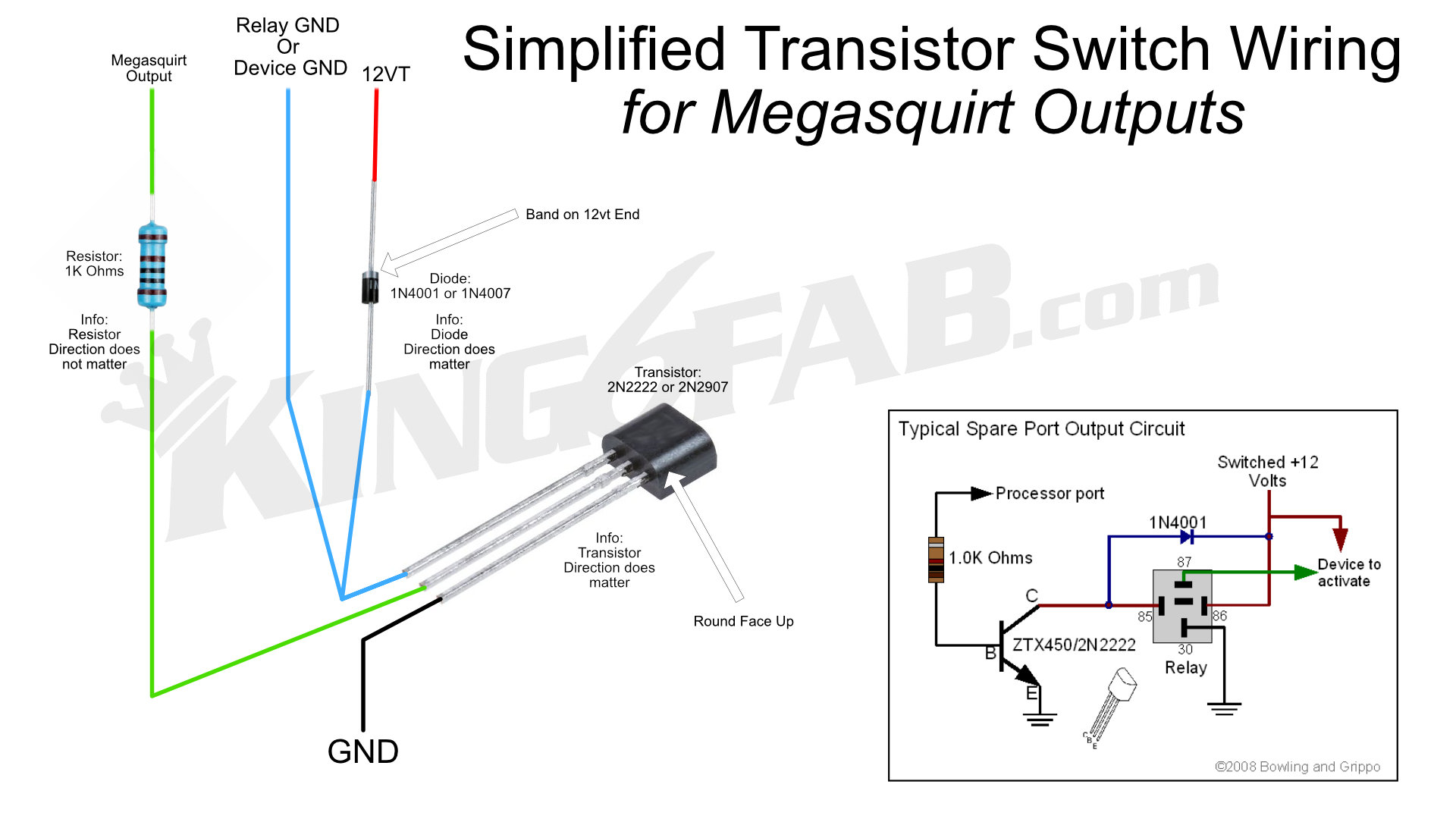

This is a simplified wiring pictorial for wiring a transistor as a low voltage on & off switch to control 12 volt electrical. Such as using digital outputs of a Megasquirt unit to control a 12 volt relay, light or device.
