This how to originates from TwoPedalWarrior of Mx6.com, to view original post see here.
This how to enables you to use LED turn signal bulbs in your tail lights and marker lights, and not have hyper flash.
You will lose the bulb out function that indicates to you a turn signal is no longer functioning.
This will work on MX3/MX6/626/Probes.
Tools:
– Bendy Back
– Needle nose pliers
– Small Pointy scissors
– Small tweezers
Step 1:

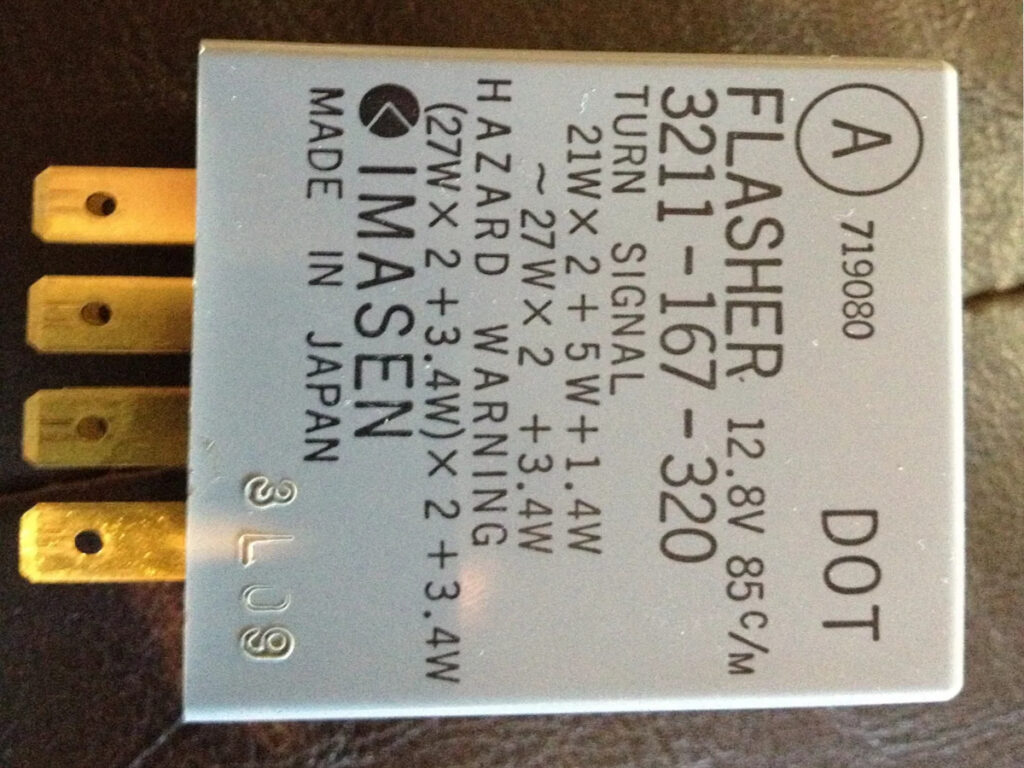

– Find this Signal Flasher Relay under the drivers side dash right near the Hood Release
– There will be 3 relay’s under there, this is the middle one.
– You can wiggle it around and give it a bit of a yank and it will come loose.
Step 2
– Take the bottom protective cover off (The tabs hold the bottom in place)

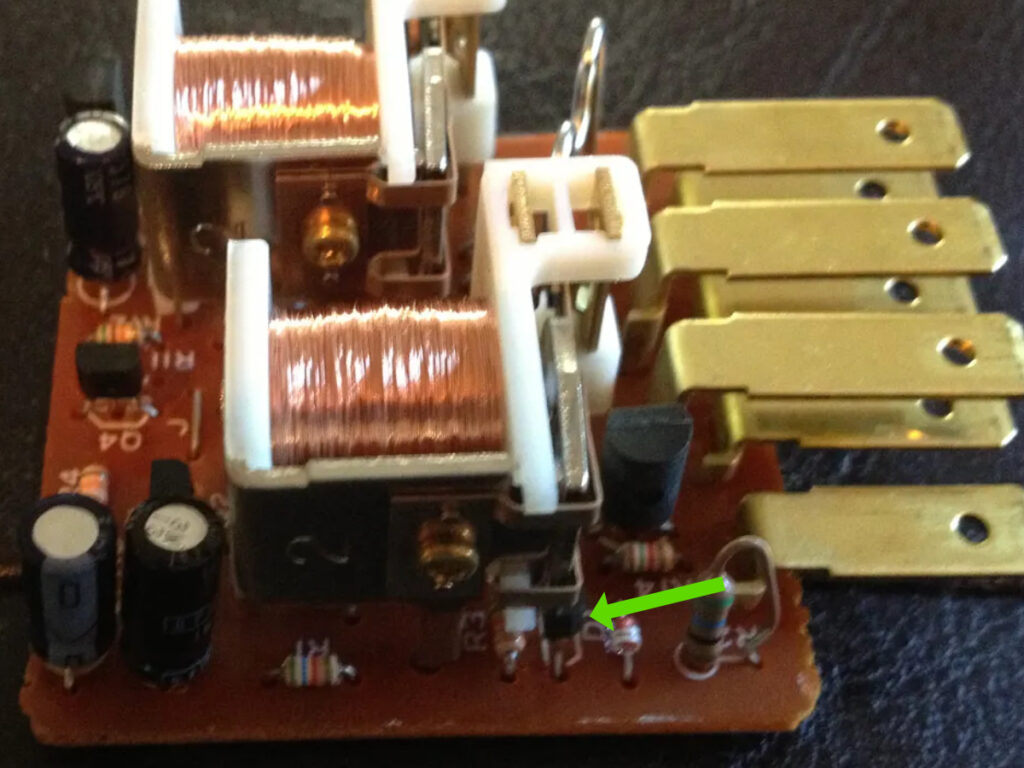

– Use the needle nose pliers to pull the circuit board, then you will have the below.
Step 3

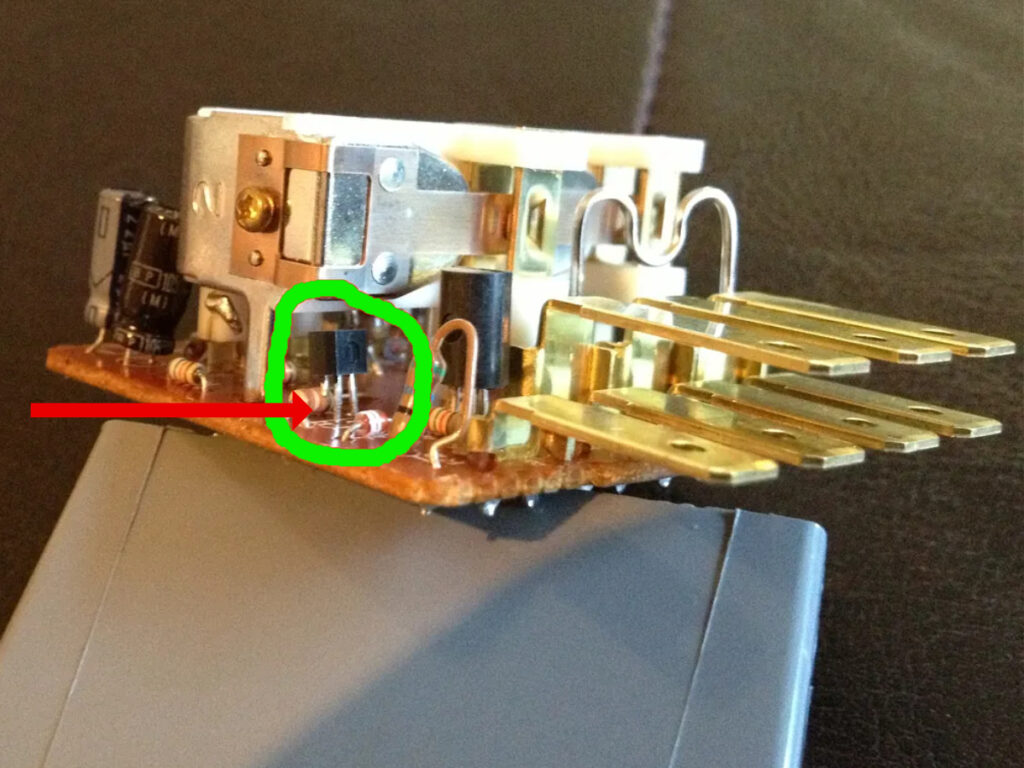

– Here is where you look for the little black transistor and clip the outermost/first leg with the scissors. Picture below will show you which one to clip/cut
– You will notice that I bent the bottom of the clipped leg back
Step 4– Put all back together and install LED lights in your corners or rear tail lights. And sit back and enjoy
