Rear Cross Member ( Build Files )

Name: Rear Cross Member ( Build Files )
SKU: DIYRearXFiles
Availability: InStock

Original price was: $50.Current price is: $30.

This is a downloadable package only.

After purchase you will receive a download link to the email address you use to checkout.

Information about Files

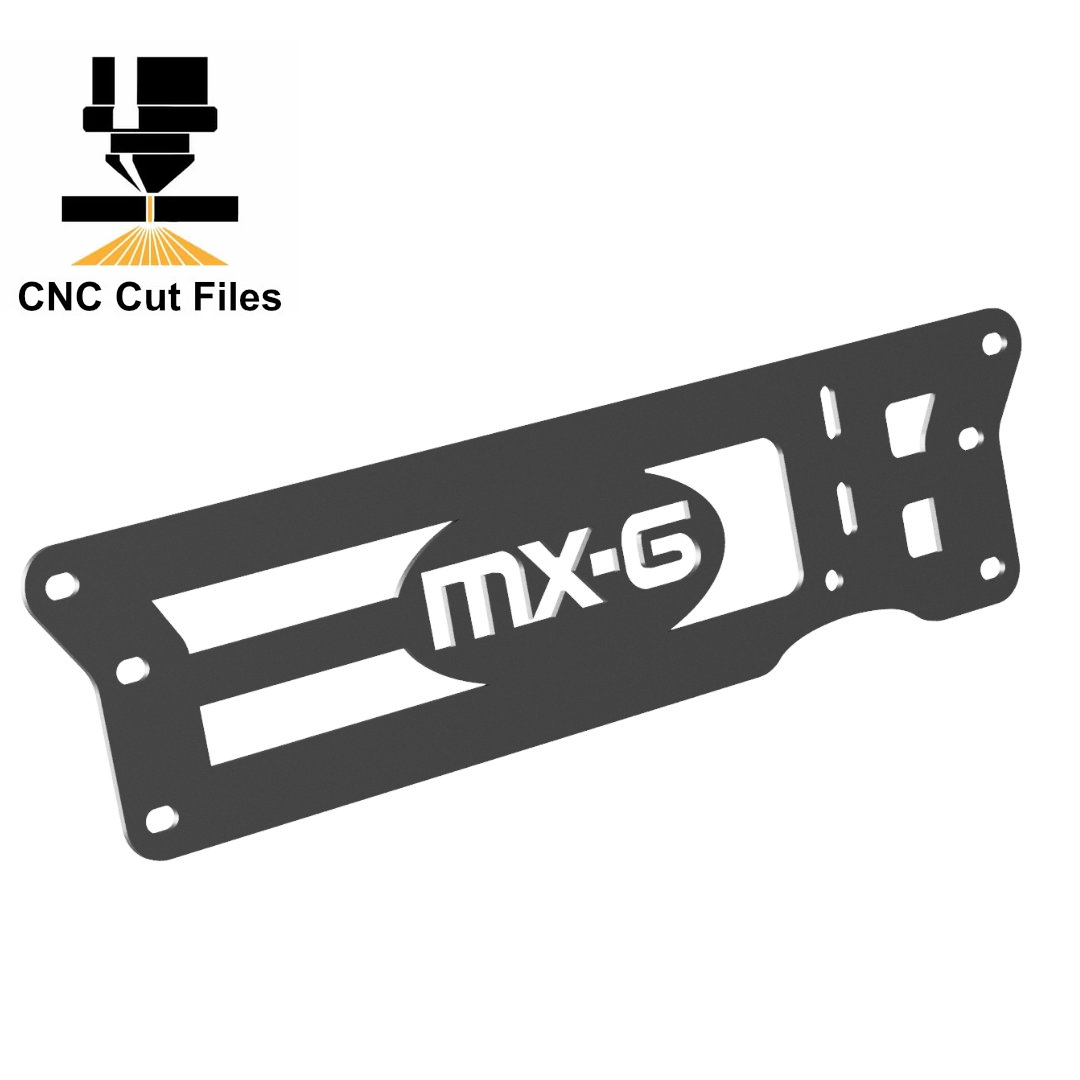

In 2024 we redesigned our rear cross member from a tubular design to a flat steel design that can be CNC Cut. This design offers weight savings, it is much easier to install and allows the user to use shims to space the cross member precisely to allow clearance of the down pipe. This design is so much easier we decided to offer the files for personal DIY use.

With these files you can fabricate your own rear cross member using local or online services by utilizing the files to CNC cut the materials. This design allows the user to utilize the lower mount feature at any time and its included in the download. Build and attach the lower mount now or later on.

What’s required to Fabricate this cross member using these files

You will need access to a machine capable of reading DXF CAD File, such as waterjet, plasma table or fiber laser.
You will need a welder capable of welding the material thickness that you choose.
Materials documented in the materials list.

Fitment

This cross member will fit the 2nd Generation Mazda Mx6, 626 and Ford Probe Models with the V6 Engine and Manual Transmission. It has not been tested on other models but is very likely to fit.

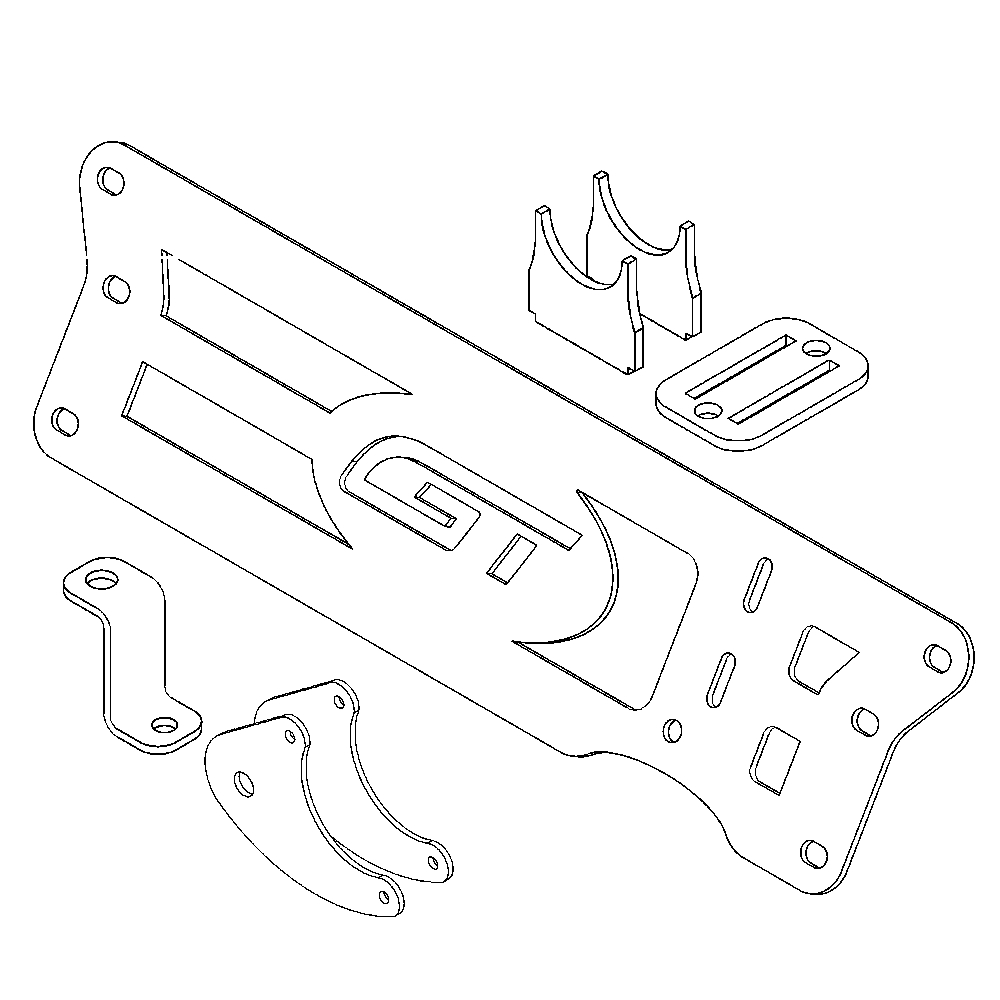

Files Included in the Download Package

You will be receiving in the package a ZIP file download that includes the following:

DXF file of the Cross Member – The file has layers: Inner Profiles, Outer Profiles.
DXF file of the Lower Mount Components – The file has layers: Inner Profiles, Outer Profiles.
DXF file of the Transmission Case Brackets – The file has layers: Inner Profiles, Outer Profiles.
DXF file of the Optional Brace – The file has layers: Inner Profiles, Outer Profiles & Bend Profiles
PDF file of Material List, Sources, Recommendation’s and Guide.
PDF Assembly guide for Lower Mount
PDF file of Optional Brace bend locations.

Personal Use License
Our design files can be used to make your own finished physical product. For extended use beyond single personal use please contact us for production licensing. However, we ask that our files themselves not be resold, shared, or distributed in any way. This includes modifying our designs and redistributing, selling, or sharing the design. You are not purchasing the right to resell, share and/or claim copyrights to the digital file you purchased. King6fab.com retains full ownership of the file for resale purposes.

Logo

Mx6

Turbo

Clear

Fast Shipping
Secure Checkout

Guaranteed Safe And Secure Checkout

Additional Information

Application	CNC Cut Files, Mazda GE Platform
Category Type	Digital Download, DIY Project
Engine Type	FSDE, KLDE, KLG4, KLZE
Transmission Type	Manual
Part Location	Chassis
Part Type	Do It Yourself (DIY)
Vehicle Model	Mazda Mx6, Mazda 626, Ford Probe
Vehicle Year's	1993, 1994, 1995, 1996, 1997

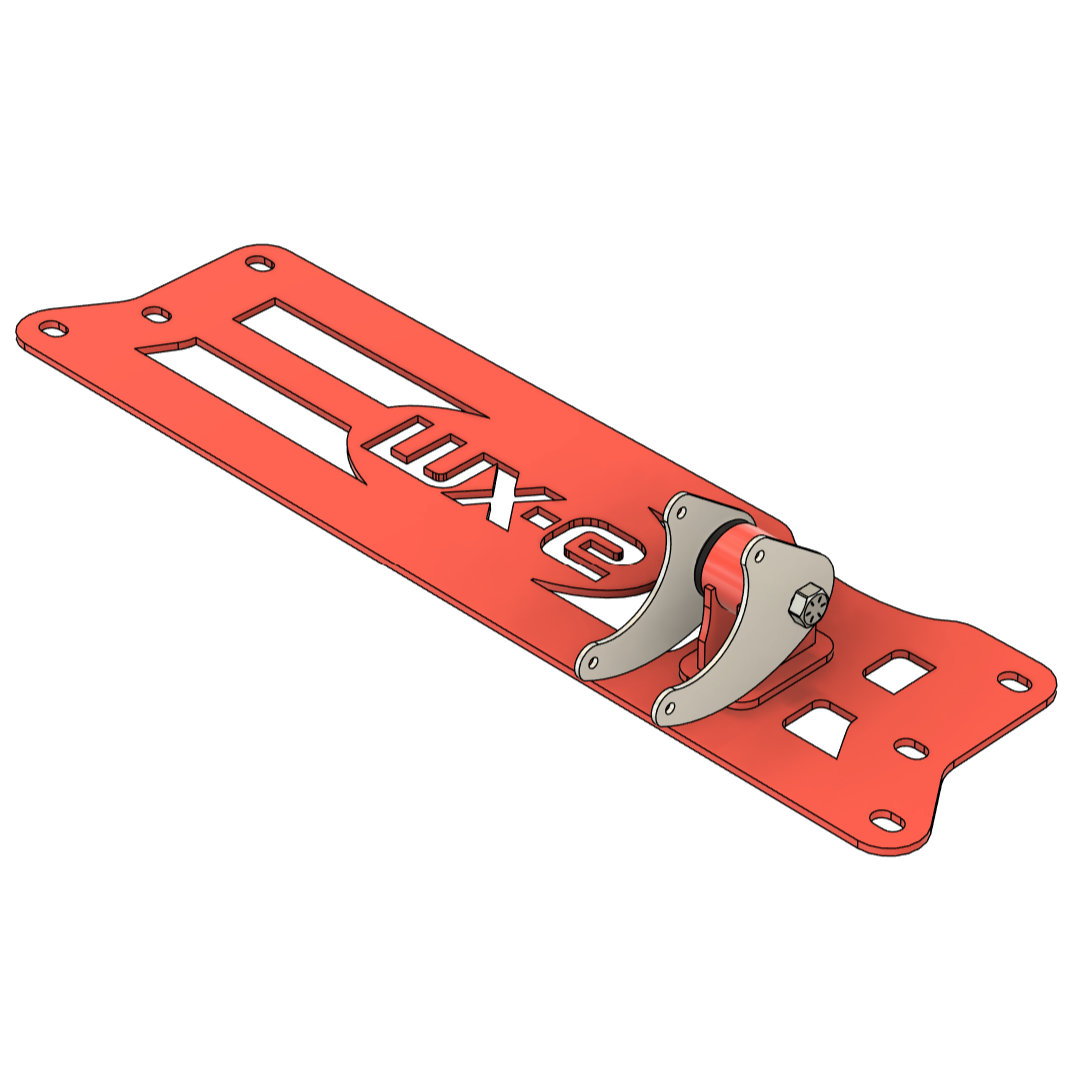

Lower Mount Assembly

PDF Download: DIYRearXAssembly

Personal Use License

Our design files can be used to make your own finished physical product. For extended use beyond single personal use please contact us for production licensing. However, we ask that our files themselves not be resold, shared, or distributed in any way. This includes modifying our designs and redistributing, selling, or sharing the design.

You are not purchasing the right to resell, share and/or claim copyrights to the digital file you purchased. King6fab.com retains full ownership of the file for resale purposes.

You MAY

Use our digital resources for personal projects.
You may use these digital files for personal, non-commercial usage as a tool for producing your own finished product.
You may only modify these designs to create a finished, physical product.

You may NOT

Claim copyrights to the resources.
Resell, re-distribute, or share our digital resources as-is or where the resource can be extracted as-is. That includes sharing with friends and family. A personal use license is only valid for one person, so if you know someone who would also enjoy our resources, please direct them to the site where they can purchase their own copy.
Use our physical product photos and/or product descriptions and titles.
Use the resources in mass commercial production, defined as where you are working with a commercial production company to create something that will be mass produced and sold on a large scale.
