DIY Front Cross Member
Adding a Turbo?
The DIY Front Cross Member  was designed for the average novice with general welding skills. This cross member is necessary if your adding a turbo to your KLDE engine or just looking for a clean-up of the engine bay. The cross member design features shortened end brackets with larger elongated holes for easy installation. The end bracket design features 1.75ID cut holes that allow a 1.75OD tube to be slid thru for easy mockup. A built in Prothane Polyurethane bushing (90 duro) allows for a quick, inexpensive install that allows for extra clearance of turbo hot & cold pipes.  Added to the end bracket’s is towing loops for easy tow strap placement, allowing your vehicle to be pulled without bumper damage.
We supply the difficult to design CNC cut parts, you supply tubing of your choice. ERW tubing is inexpensive and available most anywhere. DOM Tubing is much stronger and can be found in many thickness’s.  This is an ideal choice for international buyers as these parts can ship in a flat rate box. The easiest way to fabricate this setup is to mount the end brackets to your vehicle, measure the inside dimensions of the brackets, cut your tube to those dimensions and tack weld it in place. Then attach the polyurethane bushing assembly to the motor mount bracket, measure from your tube to the bushing, and tack weld that in place. Once all parts are tack welded, remove the assembly and finish welding.
Features:
- This item includes all the CNC cut metal parts to fabricate a front cross member.
- All materials are deburred, wire wheeled and/or bead blasted prior to shipping.
- Built in tow hook slots
- Light weight design utilizes OEM mounting locations.

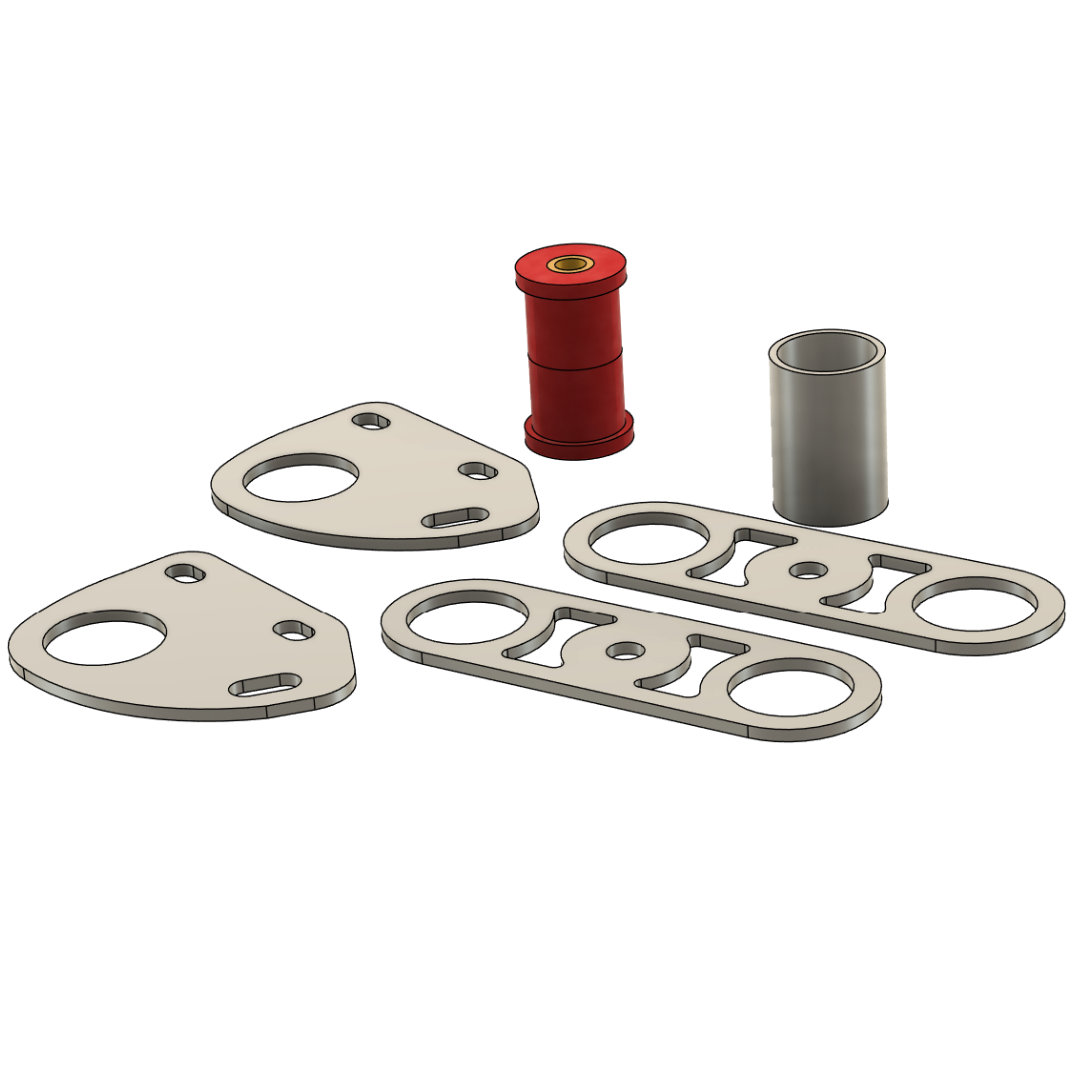

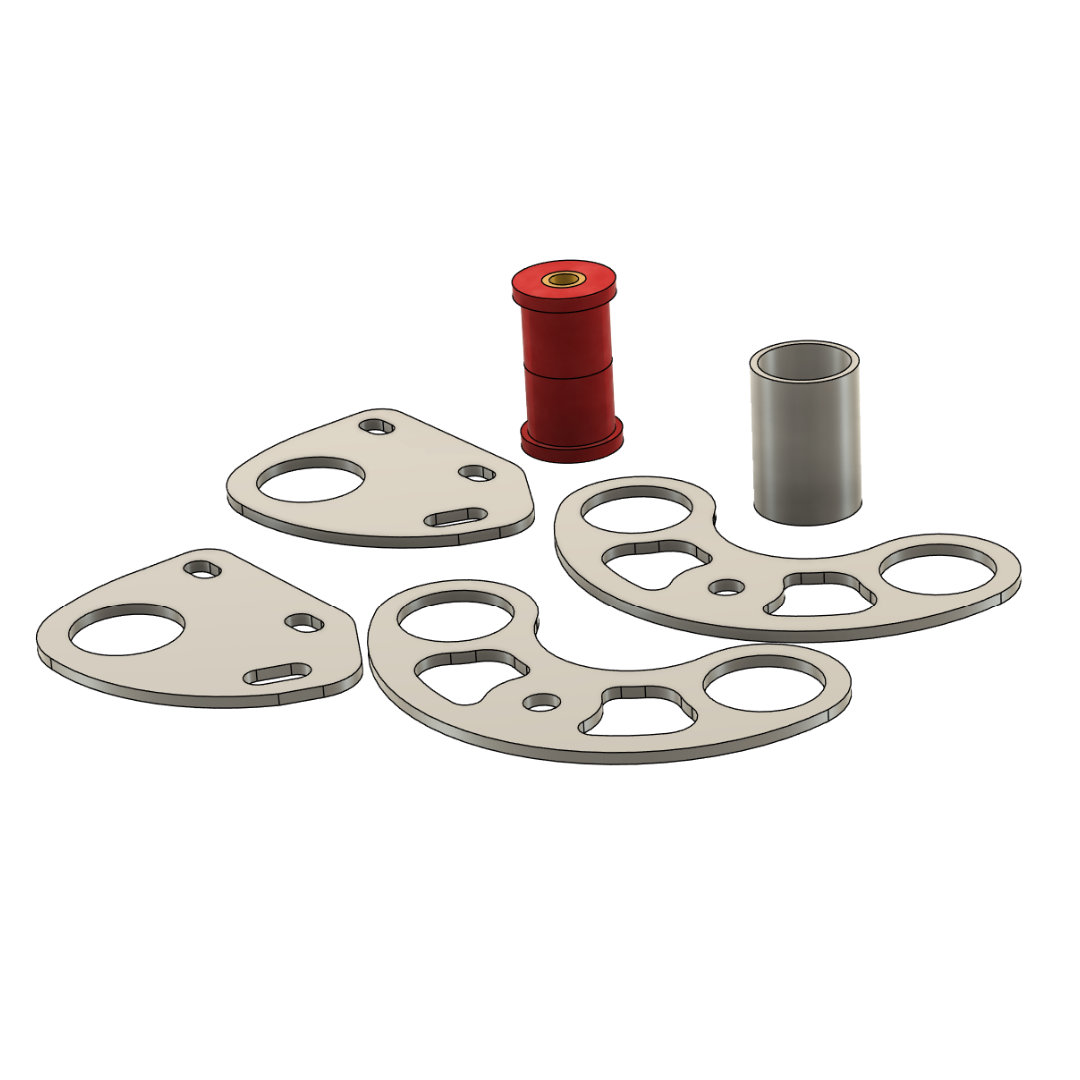

Product Includes:

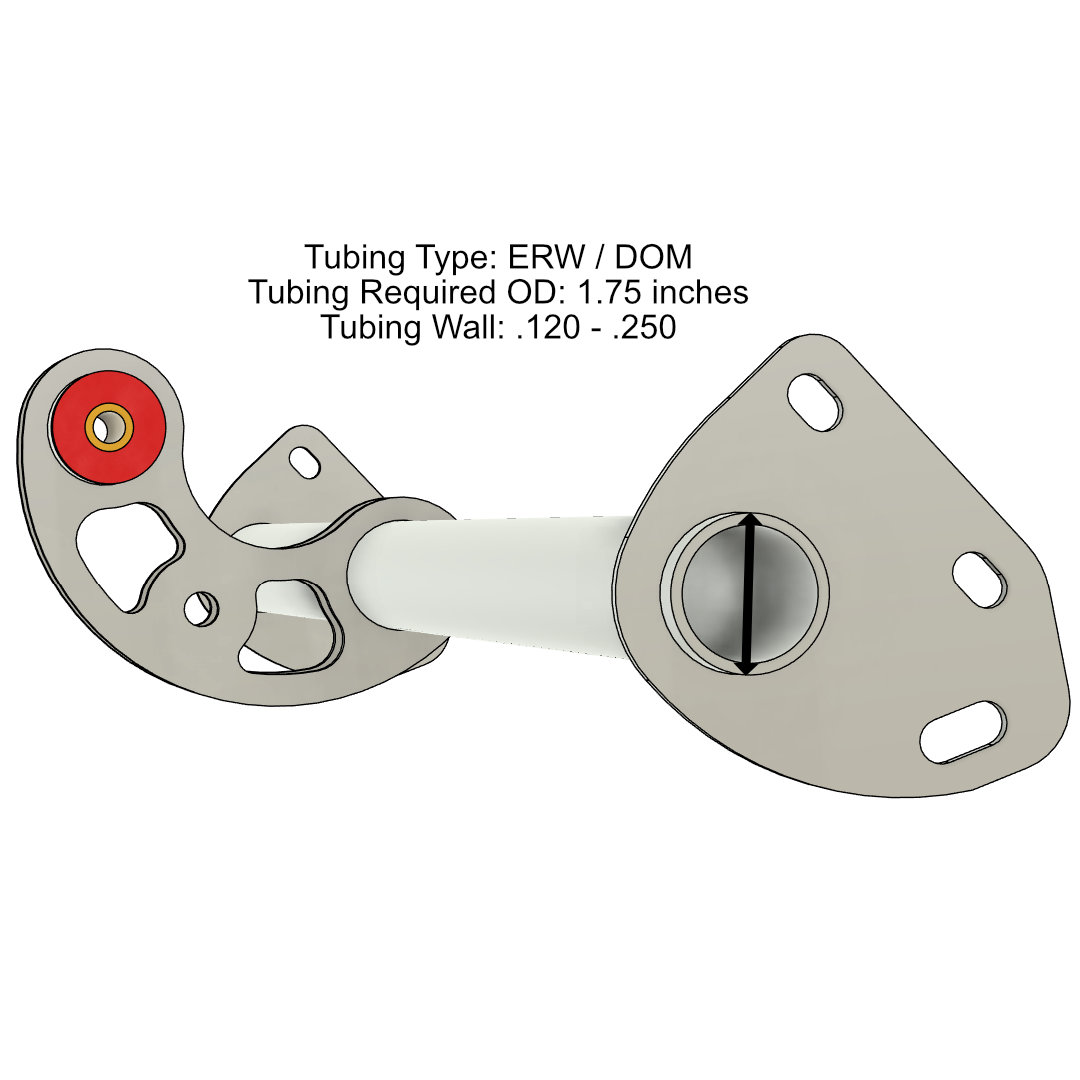

- (2) Outer mounting brackets cut for 1.75″ OD Tubing
- (2) Motor mount brackets (your style choice) cut for 1.75″ OD Tubing
- (1) Outer sleeve for polyurethane bushing
- (1) Polyurethane Bushing with inner sleeve.
Not Included:

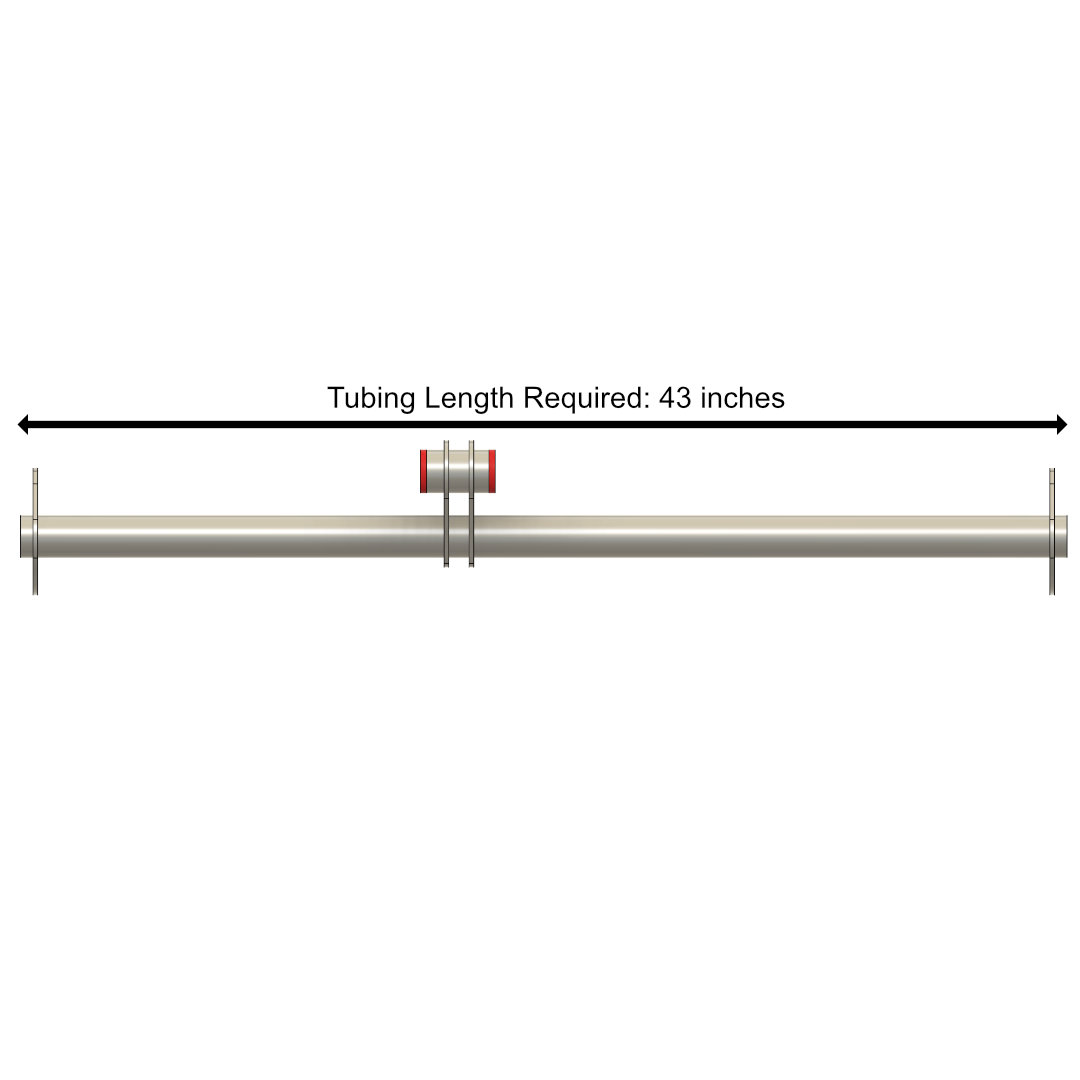

Tubing – You will need Approx. 43inches of 1.75″ OD Tubing to make this cross member.
Why isn’t tubing included? generally the tubing is inexpensive from a local metal supplier, but due to the length of tubing required, shipping the tubing is excessively expensive.Â
- Fast Shipping
- Secure Checkout
Additional Information
| Vehicle Model | Mazda Mx6, Mazda 626, Ford Probe |
|---|---|
| Vehicle Year's | 1993, 1994, 1995, 1996, 1997 |
| Engine Type | FSDE, KLDE, KLG4, KLZE |
| Transmission Type | Manual |
| Category Type | DIY Project |
| Part Location | Chassis, Engine |
| Part Type | Do It Yourself (DIY), New |

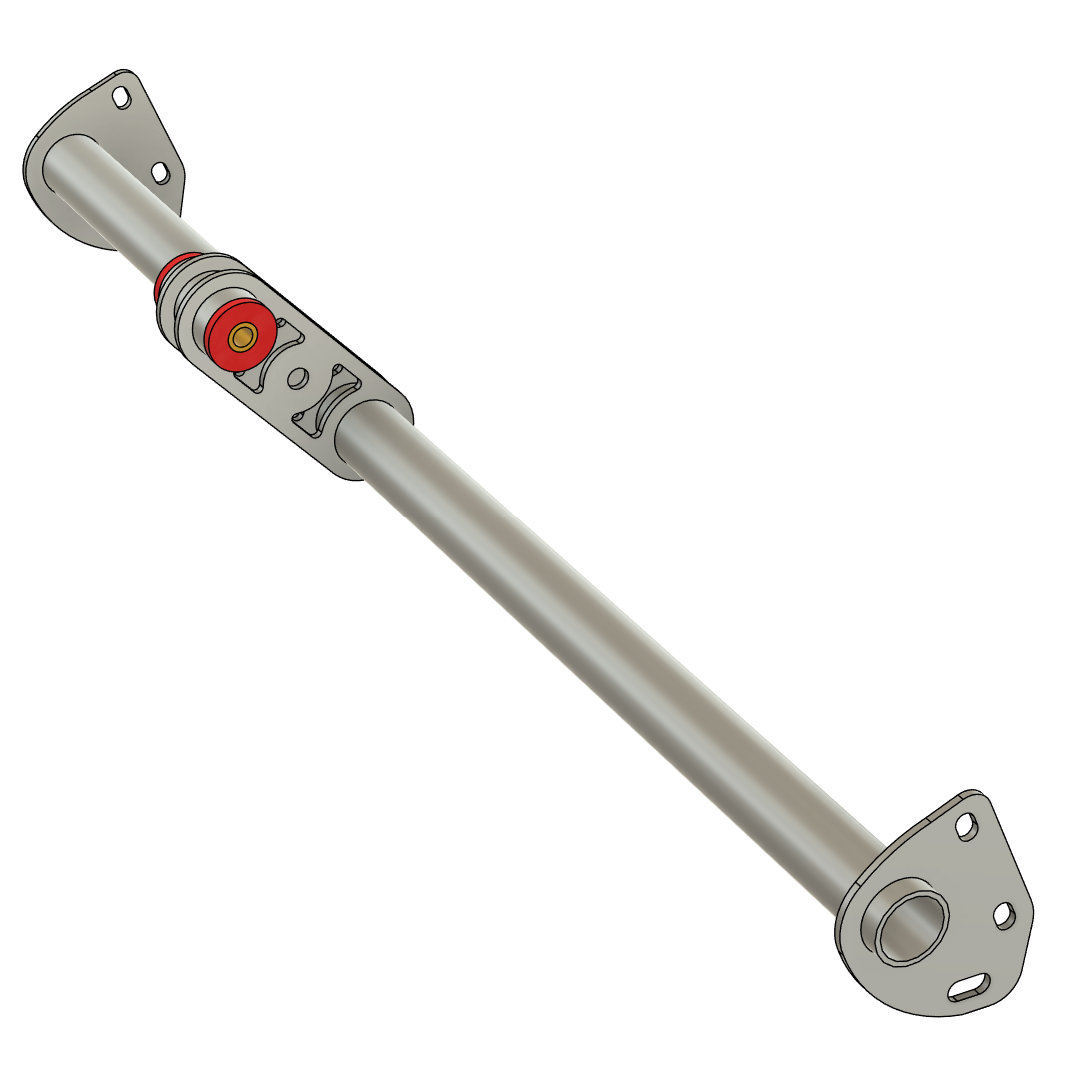

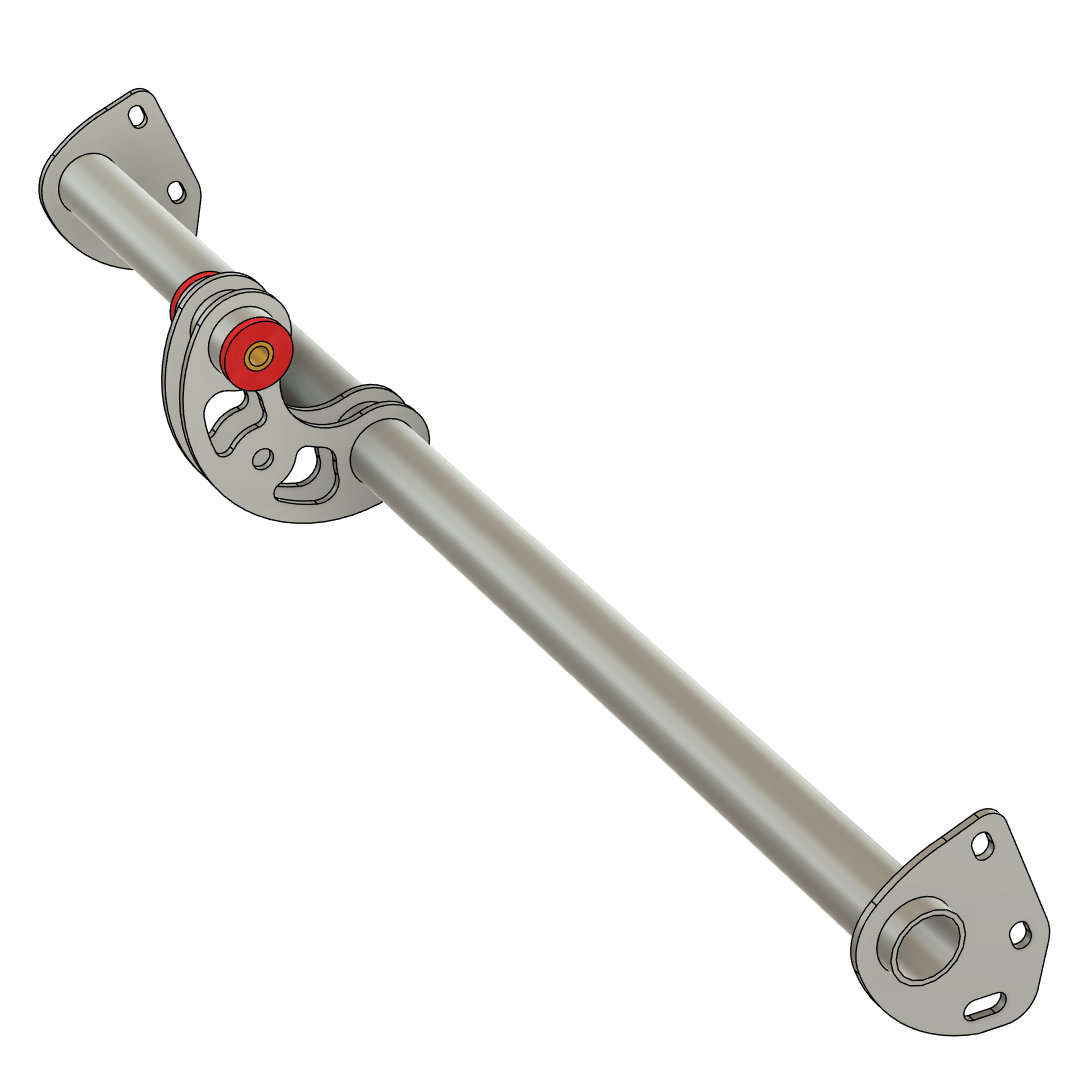

| Mount Style | Straight, Curved |
Only logged in customers who have purchased this product may leave a review.
Instructions
Tubing Length Needed: 43inches of 1.75 OD Tubing:
How to Assemble:
Step 1. Remove OEM Tow hooks

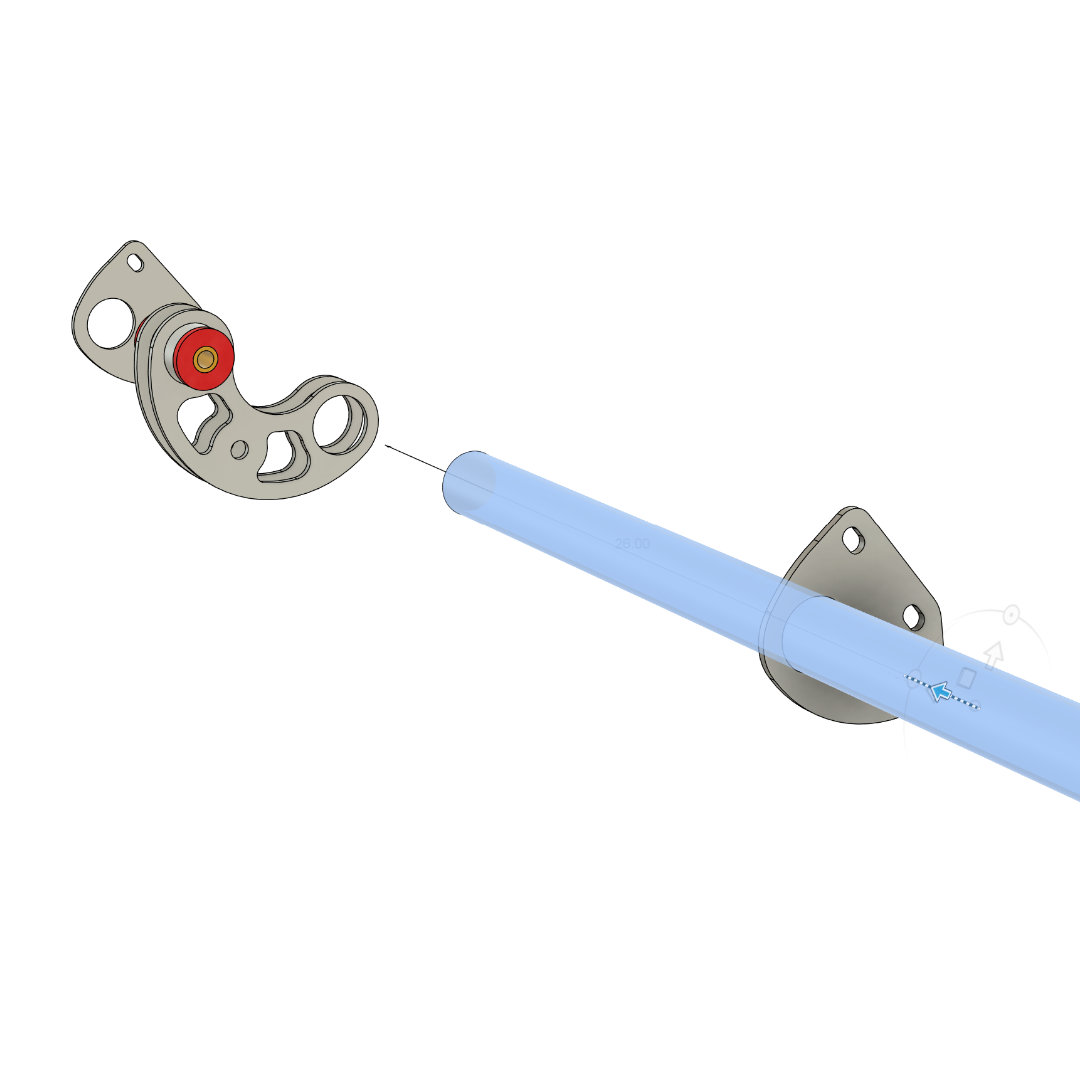

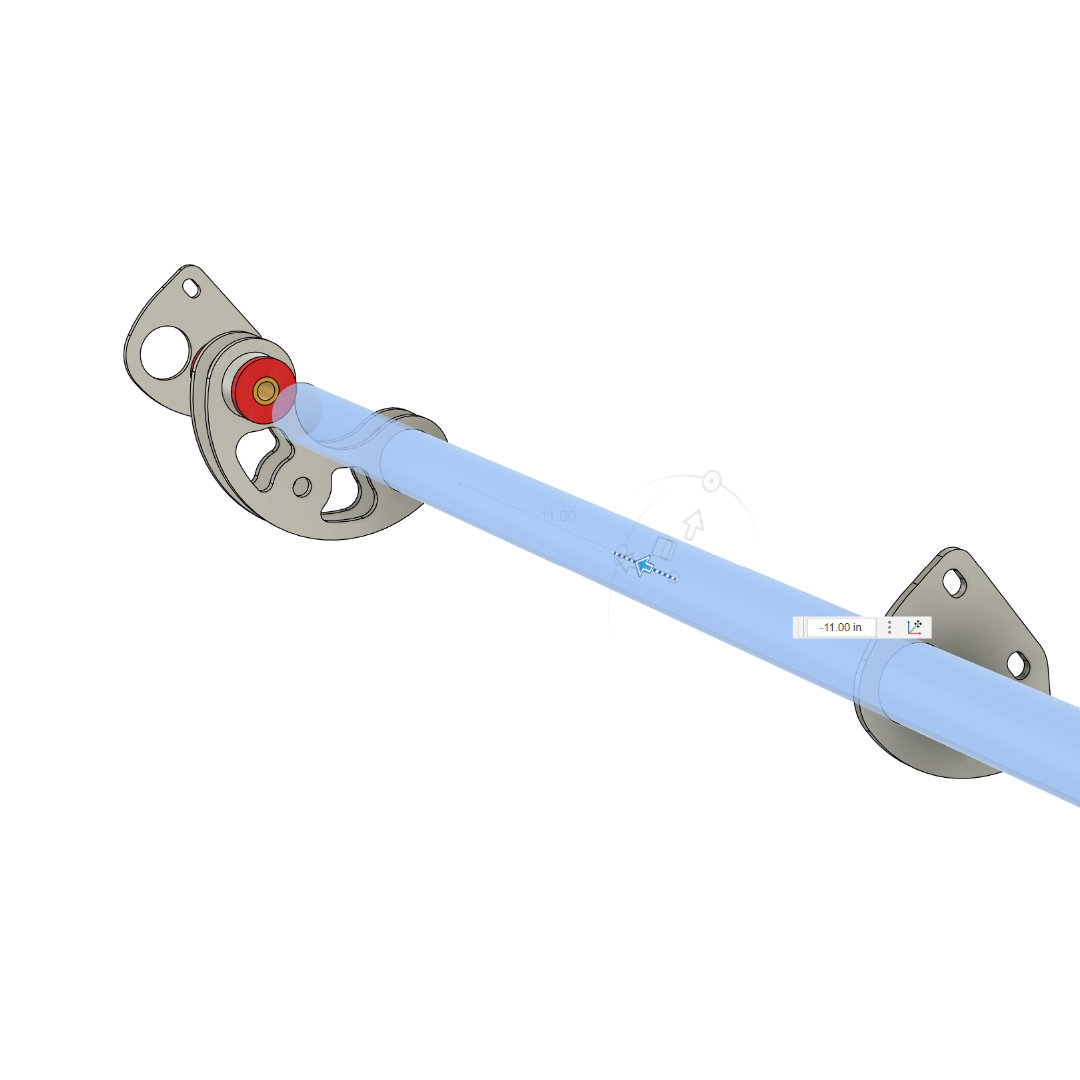

Step 2. Mount Passenger side End Bracket, Slide Motor mount brackets onto tube, Slide tube with motor mount brackets into hole on passenger side end bracket. Slide driver side end bracket onto tube and mount the driver side end backet to carStep 3. Tack weld assembled parts on the car. Remove assembly and finish welding.
What does DIY Mean?
DIY = Do It Yourself
Products specified as DIY are designed for the end user to finish the product.
These products are the raw materials to make the represented product.
They are an economical solution that also makes for a fun project.
All Fabrication, including tweaks and malleable manipulation of materials is part of the DIY process.
Many products will require manual bending and welding. Some products may require finishing work such as grinding, sanding, paint preparation.
Unless specified, all products require paint.
