MSPNP2 KL Engine Coil Pack Wire Harness
Coil Pack Wiring Harness for Plug & Play Megasquirt 2 (MSPNP2)
King6fab’s color coded wiring harness’s, eliminates the headache, confusion and risk for problematic wiring for the inexperienced with electrical.

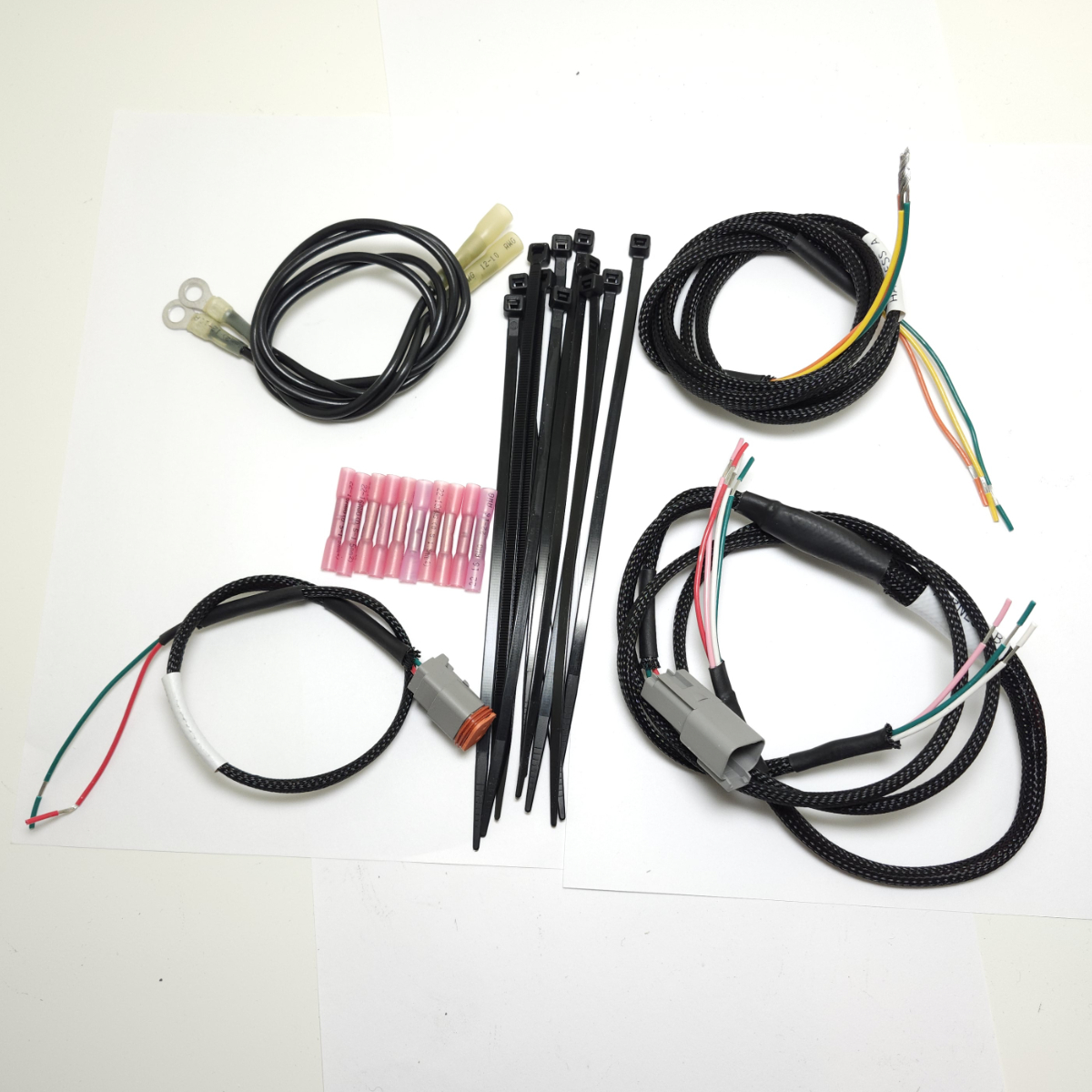

These harness’s will route from the MSPNP2 located in the cabin, through the firewall, to the coil drivers, from the coil drivers to the coil pack and from the coil pack to the tach signal wire. The wire harness’s are entirely made from color coded 20GA automotive wire, wrapped in expandable sleaving, with heat shrink crimped terminals and Deutsch weather pack connectors.
Required for this wiring harness:Â (not included)
MSPNP2 V1.2 / V1.3Â Â Â Example: MSPNP Gen2 MK9395 from Diyautotune.com
6 Cylinder Coil Pack     Example: IGN-6 from Diyautotune.com
Ignition Module*Â Â Â Â Â Example:Â Quadspark from Diyautotune.com
Tachometer Adapter Option
- Yes-Â Your PNPMS harness will come prewired with a tachometer adapter to allow your stock dash tachometer to function as it normally did with a distributor.
- No- Your PNPMS harness will need to utilize a EFI Analytics TunerStudio or MSPNP based tachometer signal from either one of its option ports on the DB connector. Commonly uses are: RaspberryPI or Tablets utilizing HUD, Digital cluster retrofits, custom installs And/Or External 5″ Tachometers such as 5″ Autometer Monster Tachometer
Coil Pack Type Option:
- IGN-6 – This wiring will be complete with a IGN-6 connector and with pre-crimped connectors to personally wire any Coil Driver of your choice.     Part#: IGN-6
- 626 -This wiring will be complete with a Mazda 626  (also Ford Taurus & Explorer ) connector and with Pre-Crimped connectors to personally wire any Coil Driver of your choice.    Common Part #s: C925, FD480T, DGE446
- FREESTAR– This wiring will be complete with a Ford FreeStar/F150 connector and with Pre-Crimped connectors to personally wire any Coil Driver of your choice.    Common Part #s: C1312, DG485, FD498
- OTHER -This wiring will be the basics with pre-crimped connectors to personally wire any Coil Pack or Coil Driver of your choice.
- Fast Shipping
- Secure Checkout
Additional Information
| Tachometer Adapter | Yes, No |
|---|---|
| Coil Pack Type | IGN-6, 626, FreeStar, Other |
| Category Type | Made to Order |
| Vehicle Model | Mazda Mx6, Mazda Mx3, Mazda 626, Mazda Protege, Ford Probe |
| Vehicle Year's | 1993, 1994, 1995 |
| Engine Type | KLDE, KLG4, KLZE |
| Part Location | Engine, Interior |
| Part Type | New |
