Sale!
Brand: King6Fab

KLDE Intake Gasket – Cut & Design Files

Original price was: $30.Current price is: $15.

This is a downloadable package only.

After purchase you will receive a download link to the email address you use to checkout.

Information about Files:

We carefully traced and modeled the KLDE engine intake gasket in Fusion 360. The model was 3D Printed and test fitted alongside a manifold for accuracy.

You could use these files to:

  • Cut new gaskets
  • CNC Cut Intake Manifold Flanges

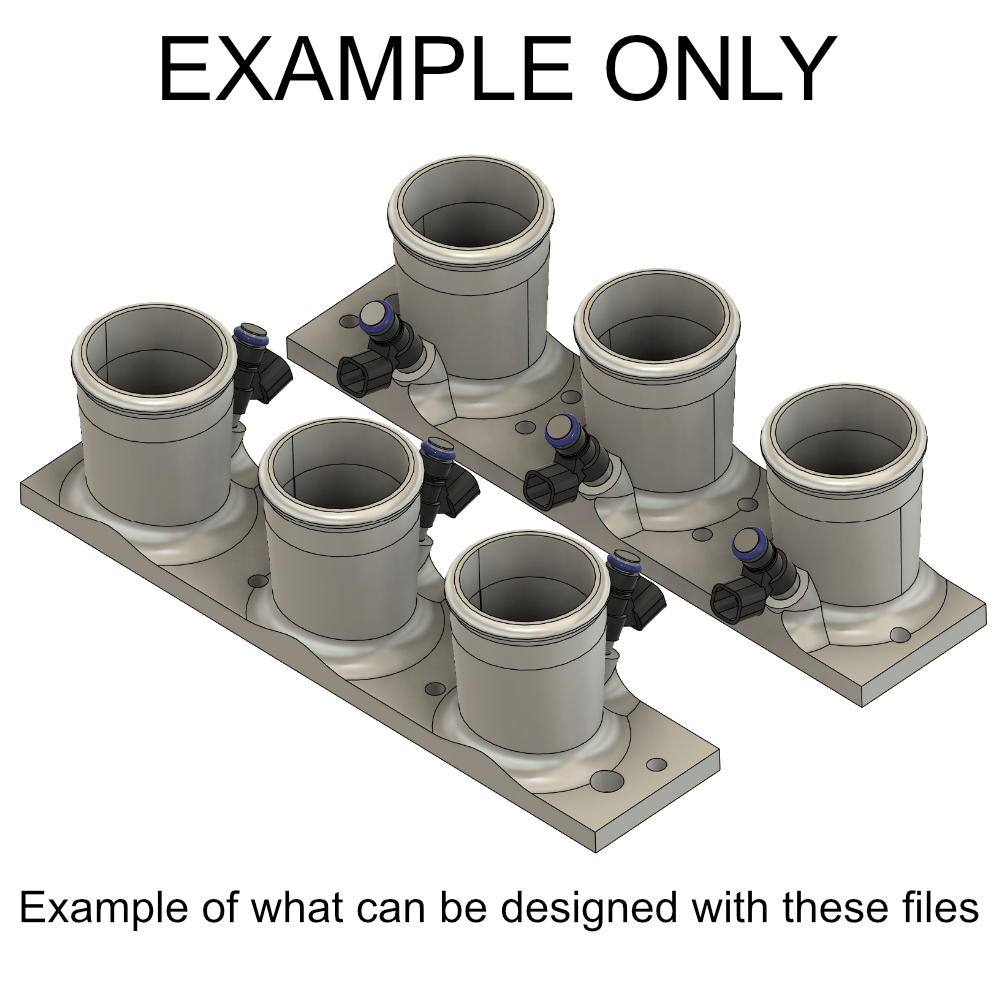

  • Model Intake Manifold modifications for 3D Printing ( See Example Picture)

Files Included in the Download Package

You will be receiving in the package a ZIP file download that includes the following:

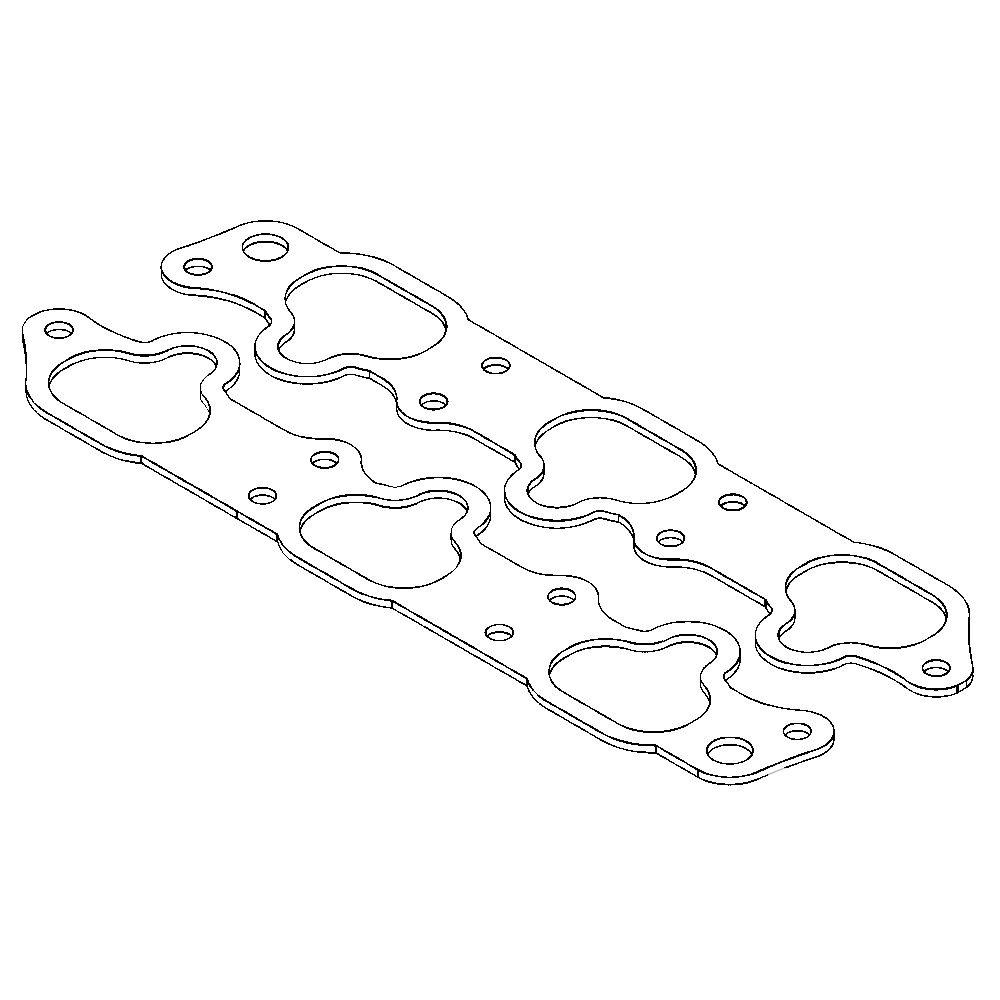

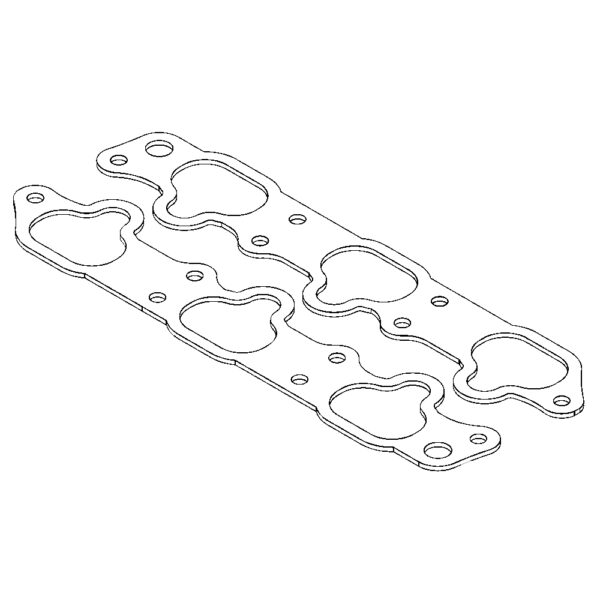

  • STEP file of Both Gaskets for 3D modeling purpose

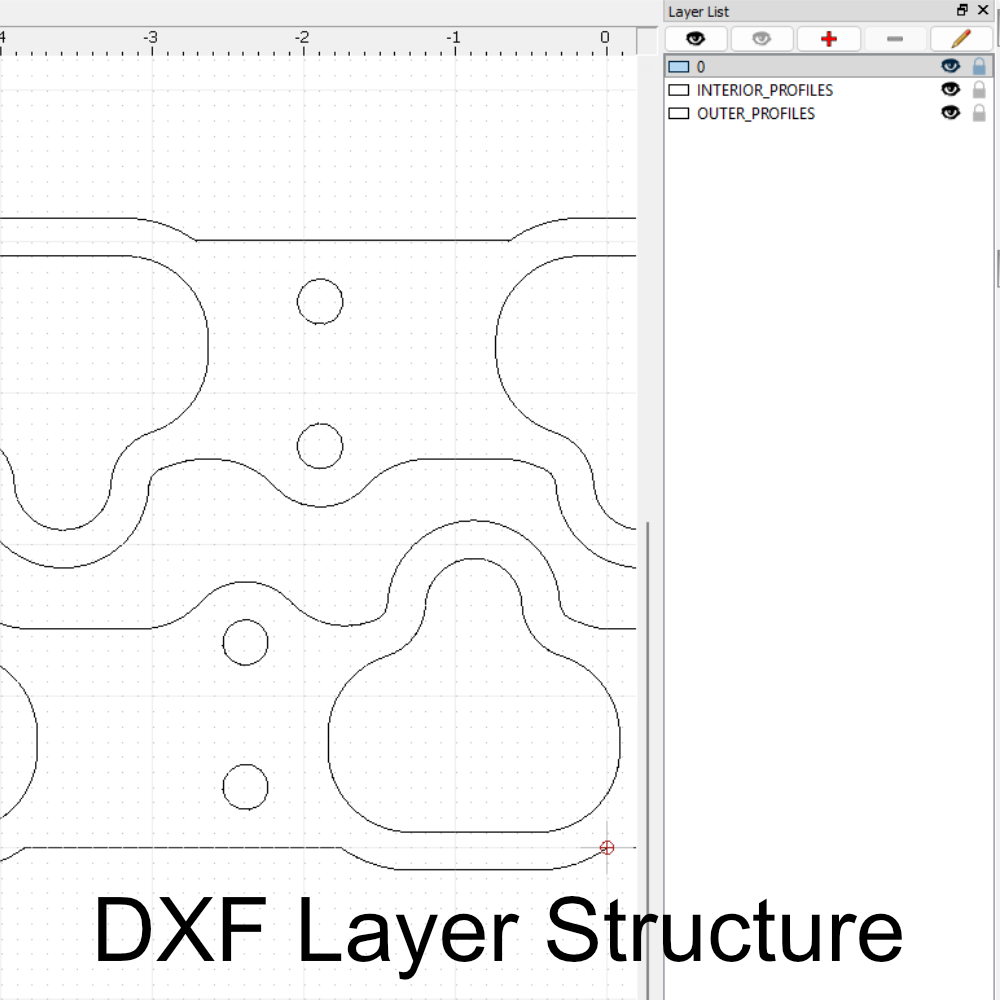

  • DXF file ready for cutting, including cut layers labeled inner & outer profiles.



Personal Use License
Our design files can be used to make your own finished physical product. For extended use beyond single personal use please contact us for production licensing. However, we ask that our files themselves not be resold, shared, or distributed in any way. This includes modifying our designs and redistributing, selling, or sharing the design. You are not purchasing the right to resell, share and/or claim copyrights to the digital file you purchased. King6fab.com retains full ownership of the file for resale purposes.

  • Check Mark Fast Shipping
  • Check Mark Secure Checkout
  • PayPal
Guaranteed Safe And Secure Checkout

Additional Information

Application

CNC Cut Files, Mazda GE Platform
Category Type

Digital Download
Engine Type

KLDE, KLG4
Part Type

Do It Yourself (DIY)
Vehicle Model

Mazda Mx6, Mazda Mx3, Mazda 626, Mazda Protege, Ford Probe
Vehicle Year's

1993, 1994, 1995, 1996, 1997

Personal Use License

Our design files can be used to make your own finished physical product. For extended use beyond single personal use please contact us for production licensing. However, we ask that our files themselves not be resold, shared, or distributed in any way. This includes modifying our designs and redistributing, selling, or sharing the design.

You are not purchasing the right to resell, share and/or claim copyrights to the digital file you purchased. King6fab.com retains full ownership of the file for resale purposes.

You MAY

Use our digital resources for personal projects.
You may use these digital files for personal, non-commercial usage as a tool for producing your own finished product.
You may only modify these designs to create a finished, physical product.

You may NOT

Claim copyrights to the resources.
Resell, re-distribute, or share our digital resources as-is or where the resource can be extracted as-is. That includes sharing with friends and family. A personal use license is only valid for one person, so if you know someone who would also enjoy our resources, please direct them to the site where they can purchase their own copy.
Use our physical product photos and/or product descriptions and titles.
Use the resources in mass commercial production, defined as where you are working with a commercial production company to create something that will be mass produced and sold on a large scale.
