DIY Rear Cross Member
$120.00 – $220.00
Please Read:
All Options below of this cross member are in bare metal and unassembled. The cross member will require paint prior to installation.

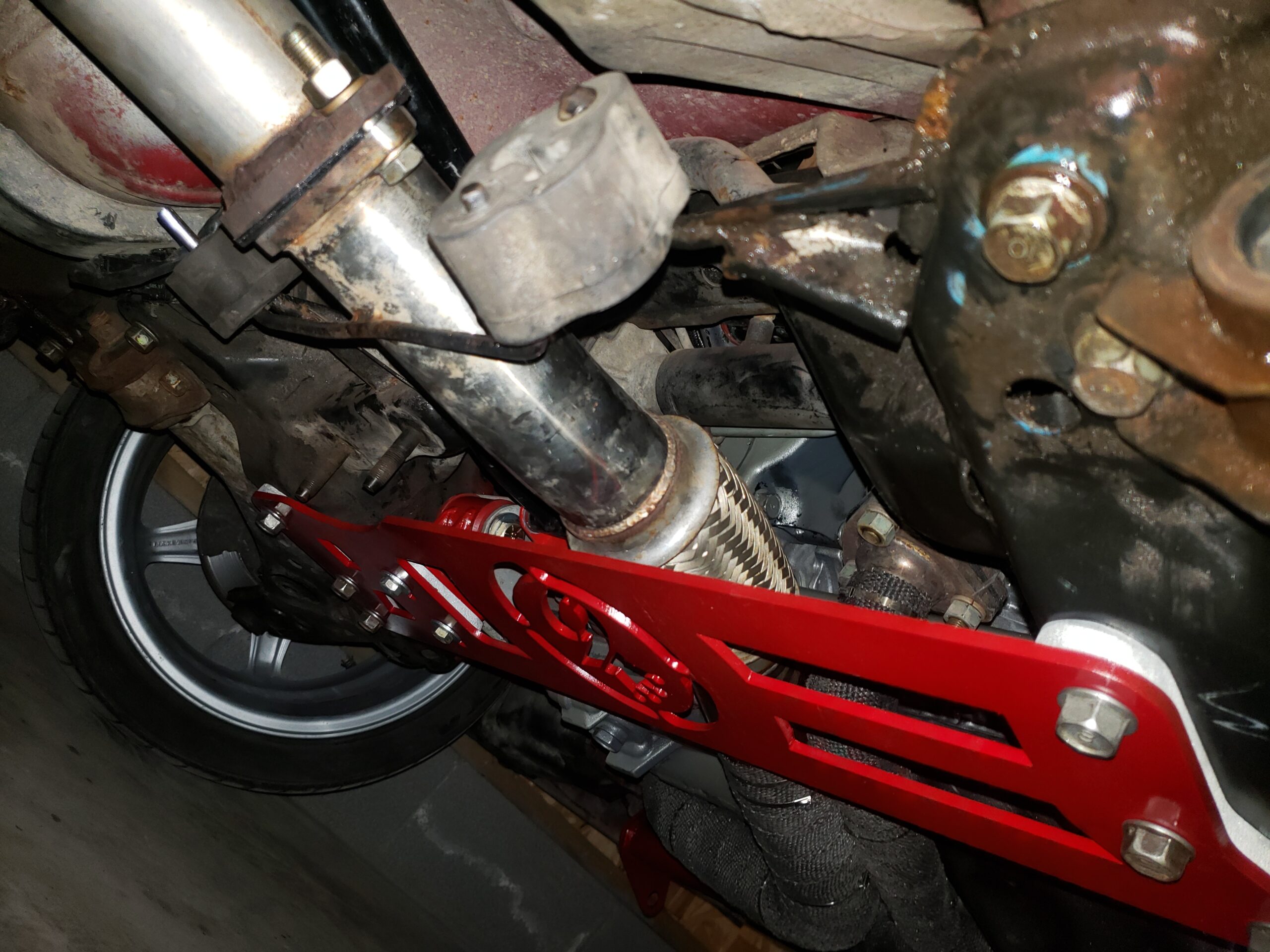

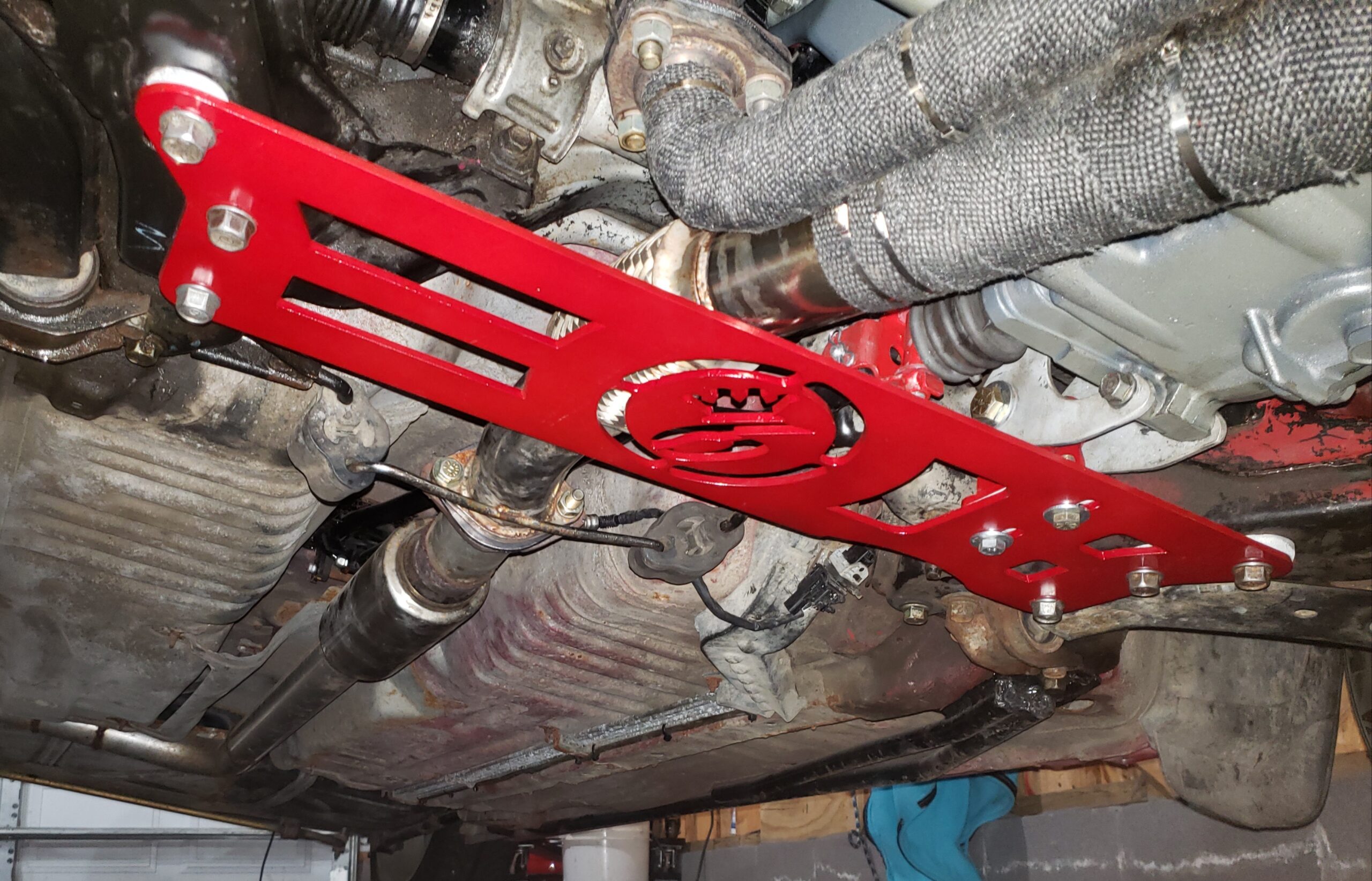

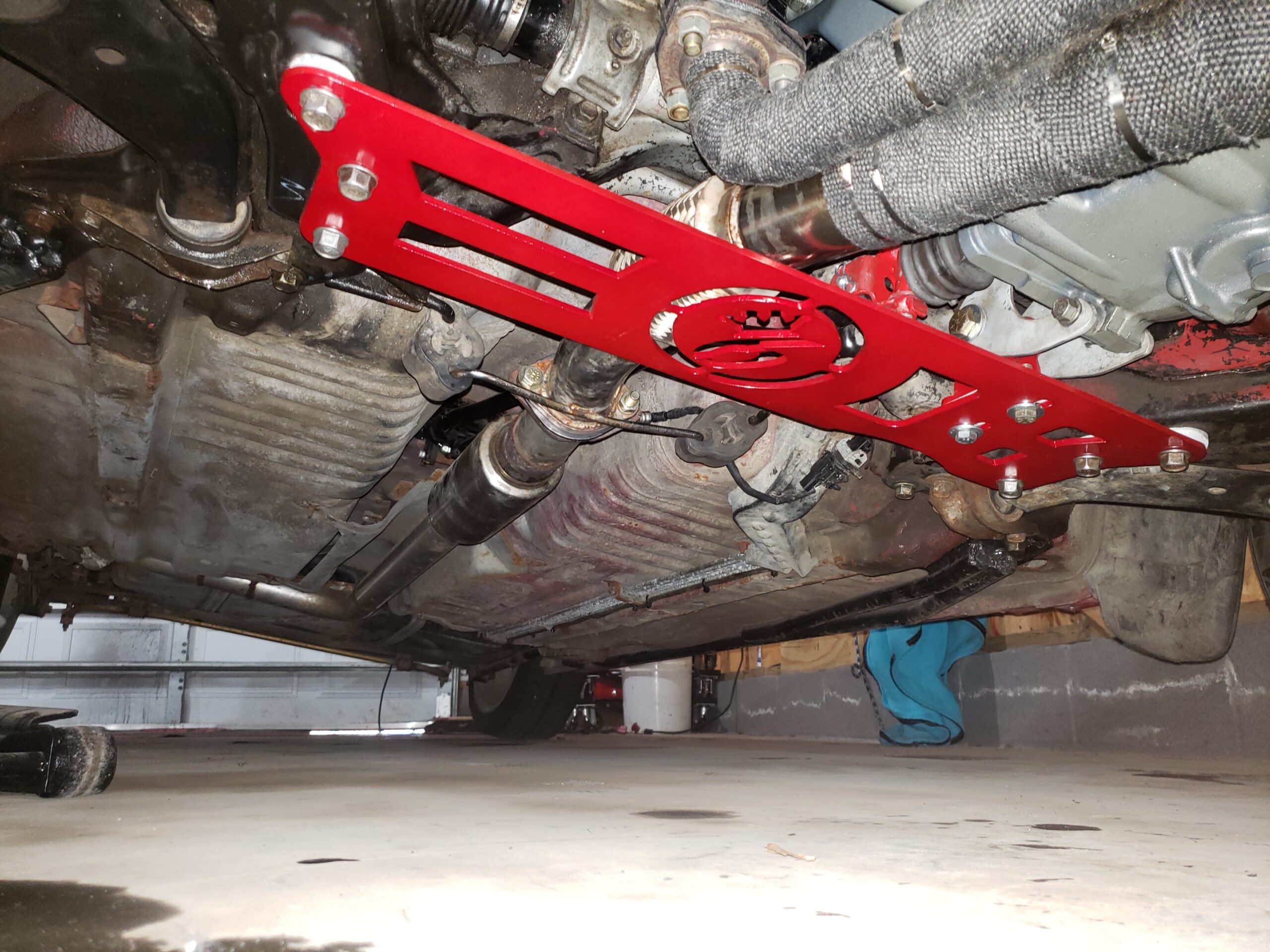

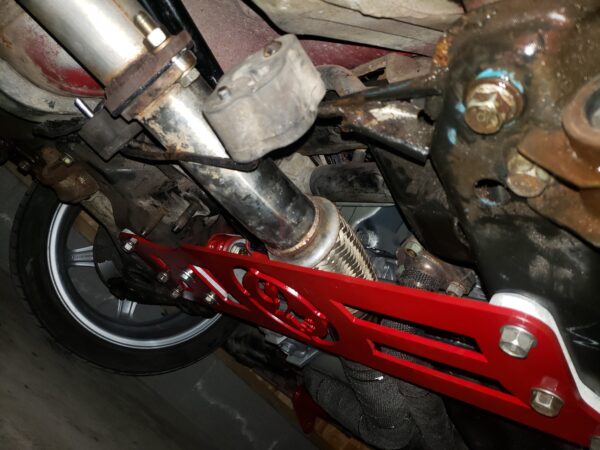

Product photo is only an example of a painted cross member.
Description
New in 2023
We have developed a rear cross member design that cuts down on cost and makes installation & removal much easier.

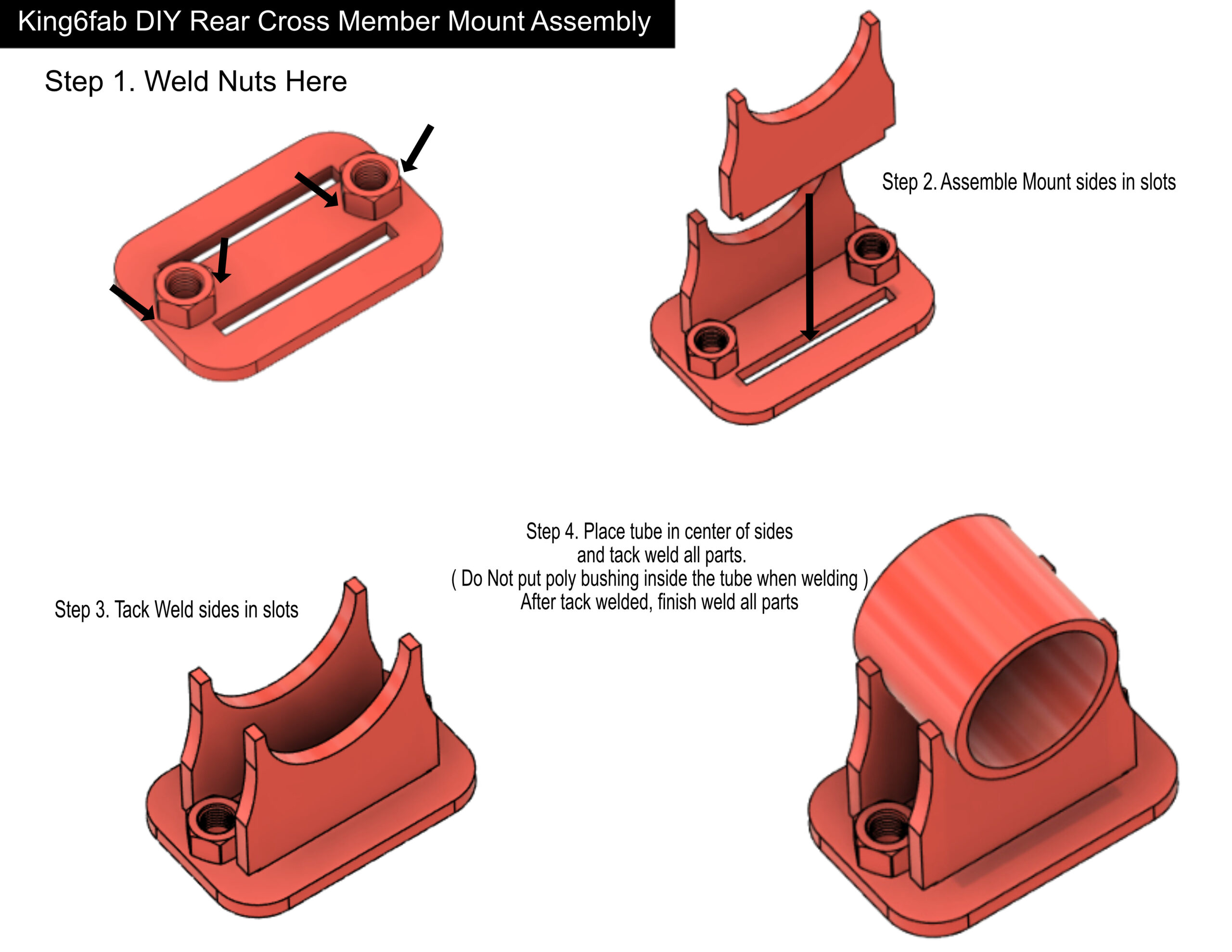

This cross member is designed to be completely do it yourself, for the without lower mount option, it comes in unfinished bare metal and will only require paint. For the with lower mount option, it will also require paint with minor fabrication of bending an L bracket to size and a mount that fits together like a puzzle making it very easy to weld without a JIG or clamps.
Type Option
- without lower mount option only requires paint prior to installation.
- with lower mount option will require minor bending of a strap and welding of a mount.
Material Details:
- A36 Steel 3/16 (.1875in) Thickness
Benefits:
- Easy Installation

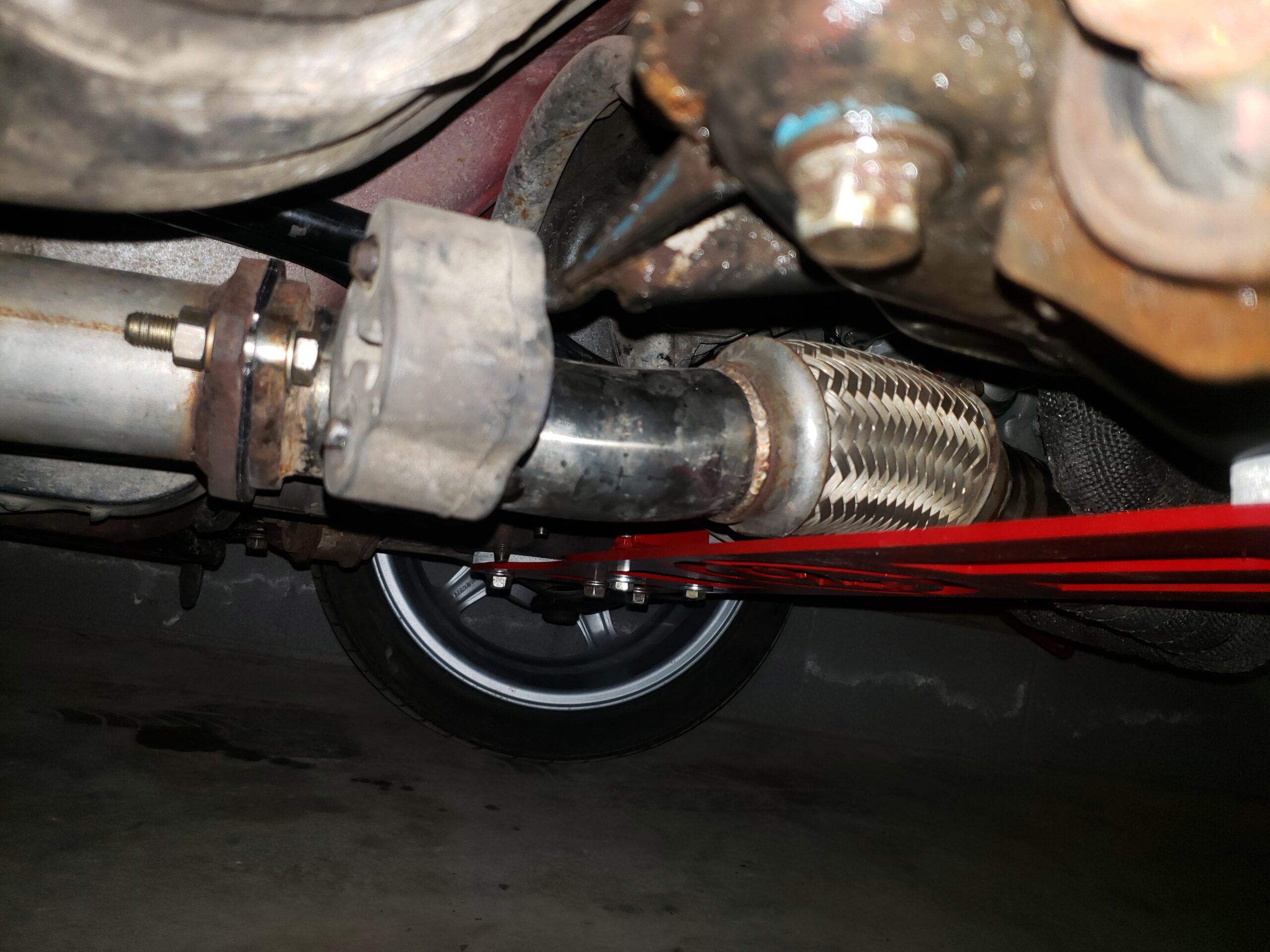

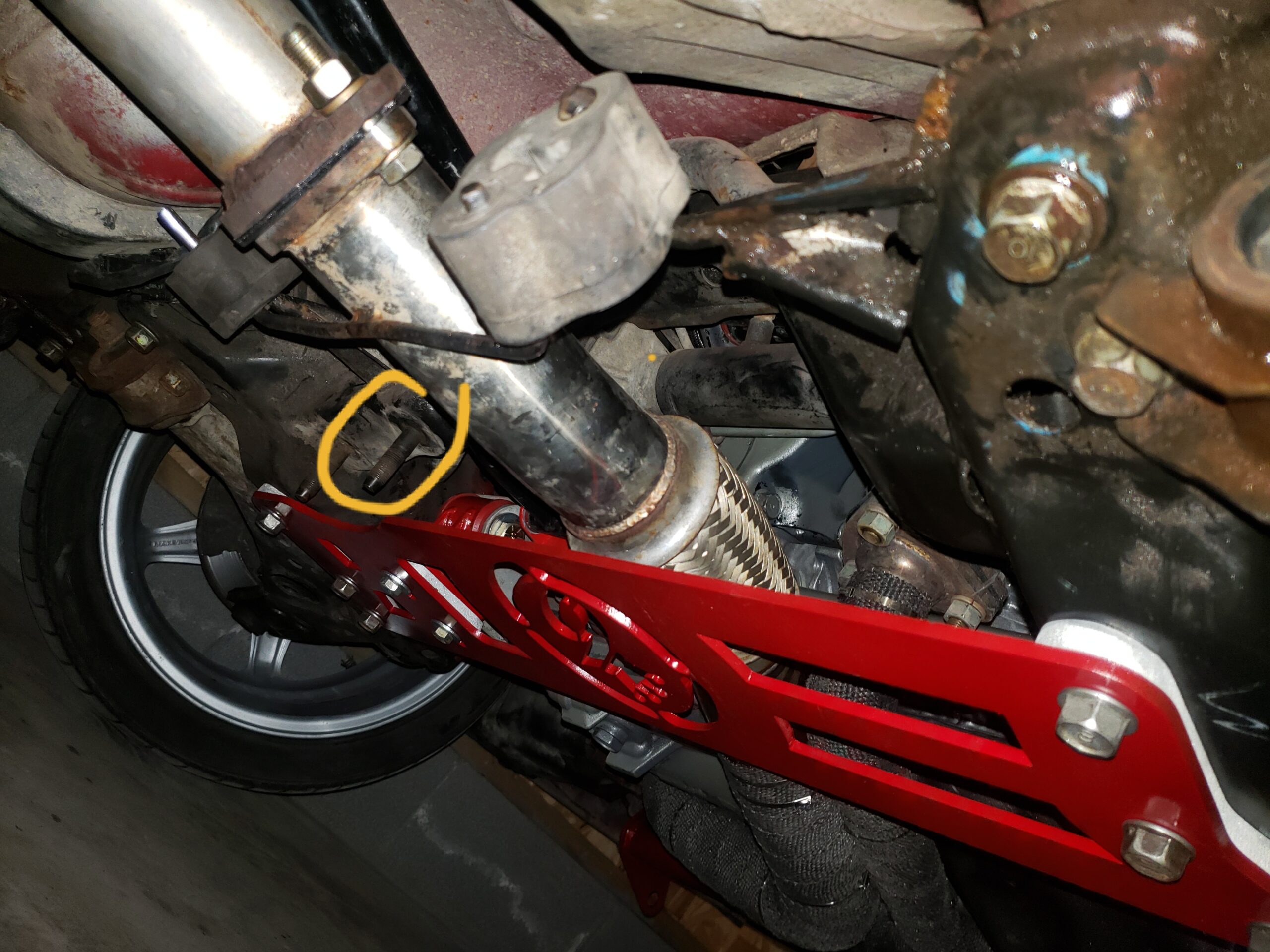

- Spacer options for downpipe clearance
- Custom designs
Type Options
Choose the cross member type you need.
Standard Cross Member
This option is best suited for when using the OEM front to back cross member and is designed to allow adding a lower mount at a later time.
With Lower Mount

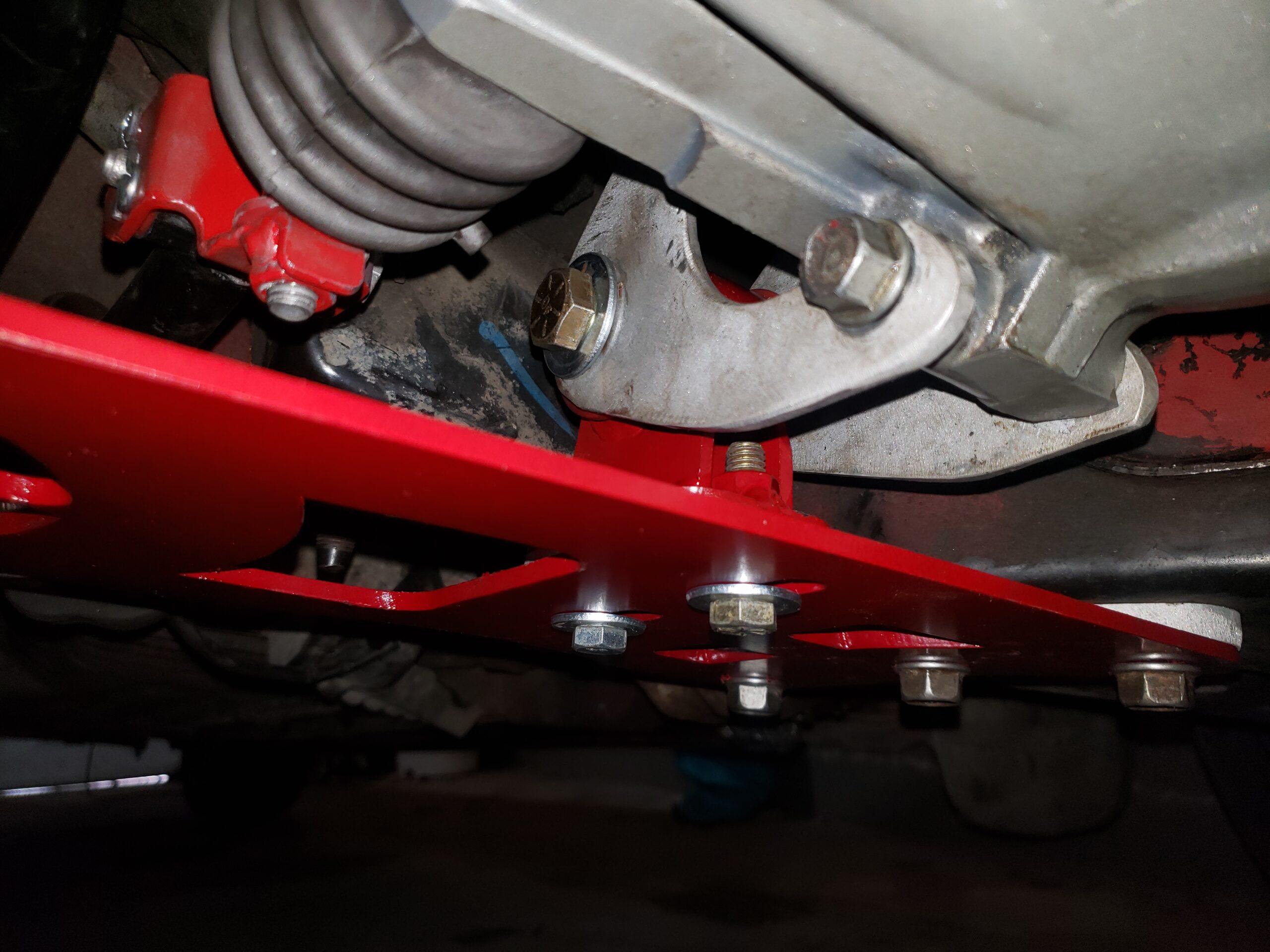

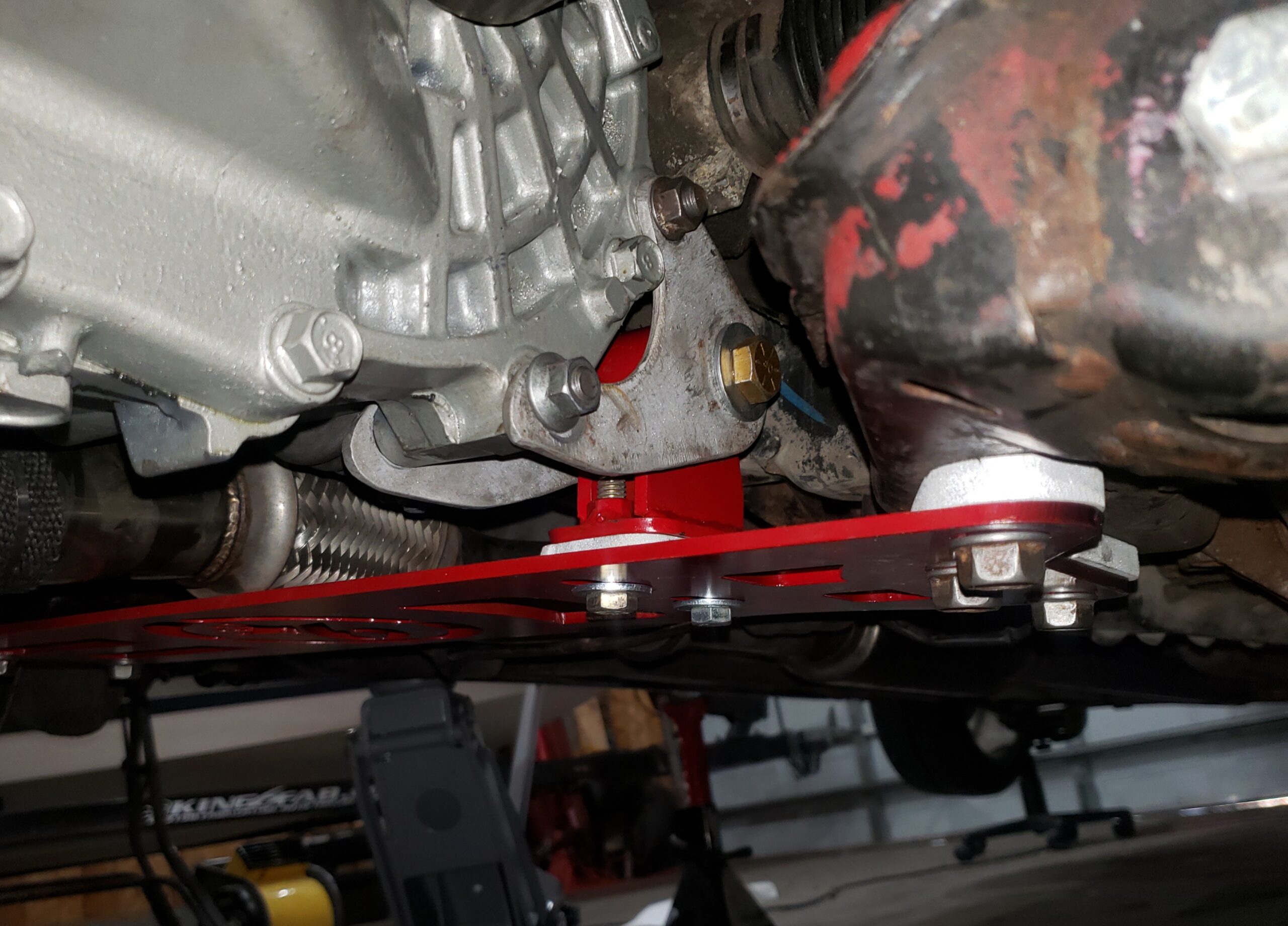

This option is best suited for when using the King6fab Front turbo cross member and includes the lower mount with Polyurethane bushing & transmission bracket attachments.
Cut Out Options
Choose the design you want

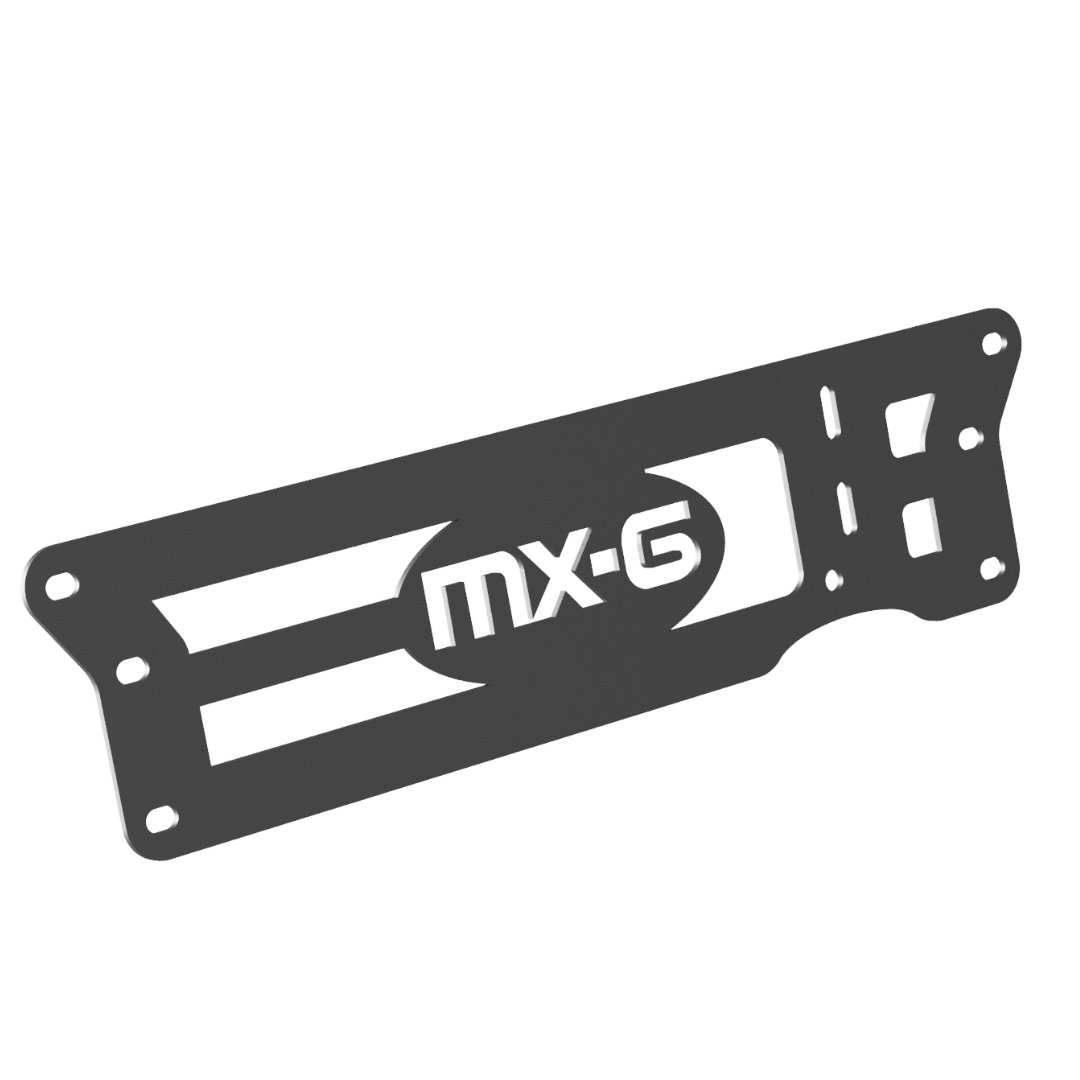

Mx6 Cut Out Design
Probe GT Cut Out Design
Turbo Cut Out Design
Add On Option
Spacers to get the clearance you need.
Spacer Design
The new cross member is designed to utilize spacers that can be layered to precisely make clearance for your needs.
Spacers can be bought in steel or aluminum in various sizes, they also can be 3D Printed or download the template to choose a DIY material of your choice.
The files for these DIY options can be found on the spacers product page
Using spacers will require longer Metric bolts to attach the cross member to the subframe.
DIY Rear X Spacers
$25.00 – $64.50
To Increase clearances over sizes offered, purchase multiple quantity’s.
Example:
Clearance desired: 1/2inch. Purchase Quantity 2 of 1/4″ option
Description
This spacer design was created to be a cost effective way to precisely space the rear cross member for downpipe clearance.
Material Option
Select the material that fits your needs.
We offer 2 types of materials:
A36 Steel – This material is less expensive and is the same material the rear cross member is made from but will require paint.
5052 Aluminum – This material will not require paint, weighs about half of the A36 Steel option but cost much more.
Alternatively, we offer files to cut your own spacers.
Also, the STL file to 3D print the spacers if you prefer.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material | A36 Steel, 5052 Aluminum |
| Thickness | 1/8, 3/16, 3/8, 1/4 |
