Adjustable Timing Belt Tensioner

$85 – $105

Selling fast! Over 8 people have this in their carts

Don’t get stranded from a common failure, use our tensioner for reliability!

  • Check Mark Fitment Guaranteed
  • Done Fast Shipping
  • PayPal
Guaranteed Safe And Secure Checkout

Our Manual Timing Belt Tensioner is designed to replace the OEM Auto hydraulic tensioner that is a common to failure point on the KL series engine. When the OEM auto tensioner fails it allows the timing belt to jump on the valve train causing a no start or retarded timing condition.

Features:

  • New Design allows precise adjustments
  • New Design can be adjusted easily with flex head 3/8 ratcheting wrench
  • This tensioner is a direct replacement on the KL V6 engines.
  • No modifications needed to the engine.
  • Painted in POR15 Top Coat Gloss Black

Options:

  1. With Hardware: Timing Tensioner will use the existing hardware from your OEM auto tensioner. This hardware may be too long and require washers to tighten the tensioner fully.

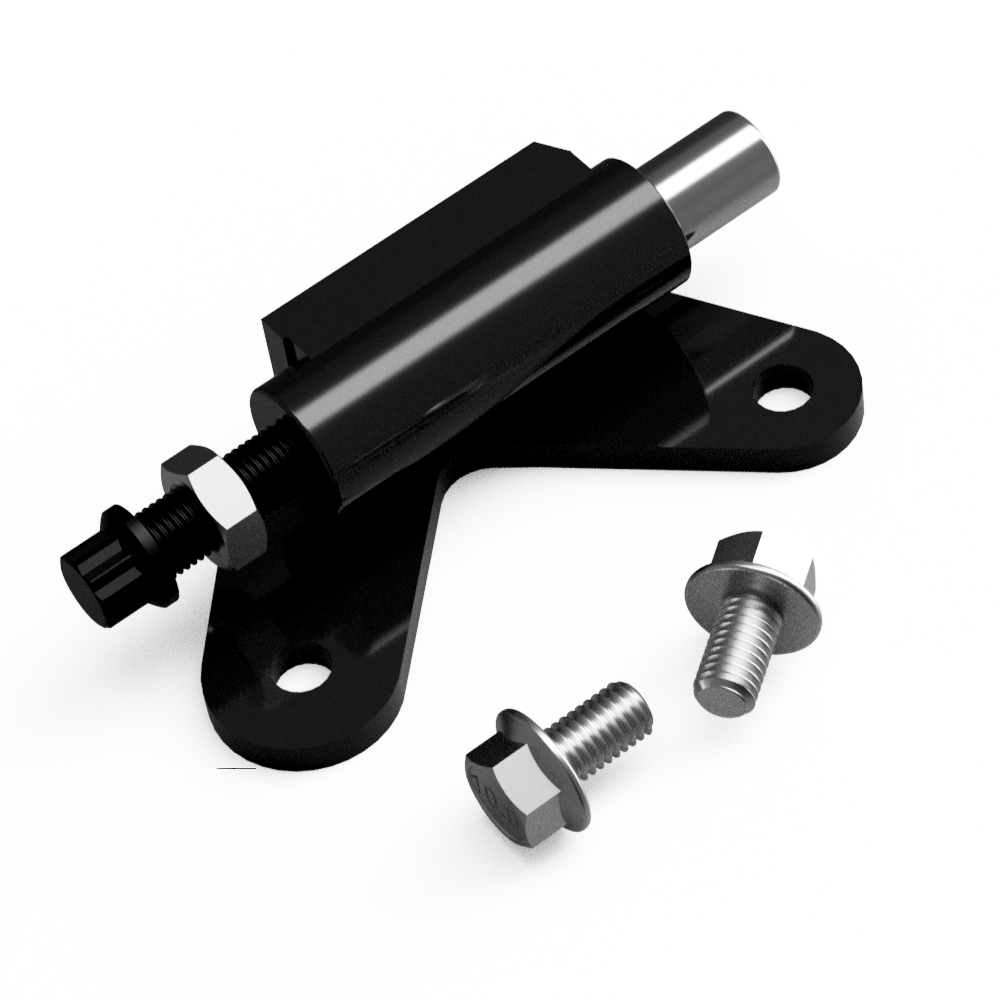

  2. Without Hardware: Timing Tensioner includes (2) 8mm x 14mm High-Strength Steel Flanged Hex Head Screw’s that are sized correctly to tighten tensioner fully.

Suggestions:

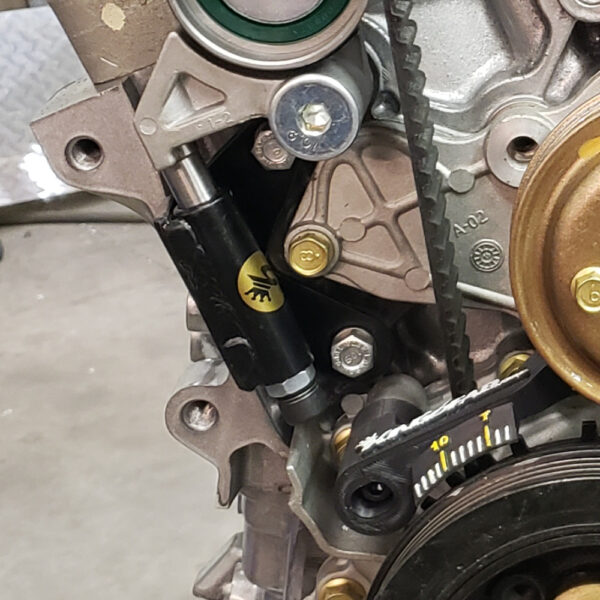

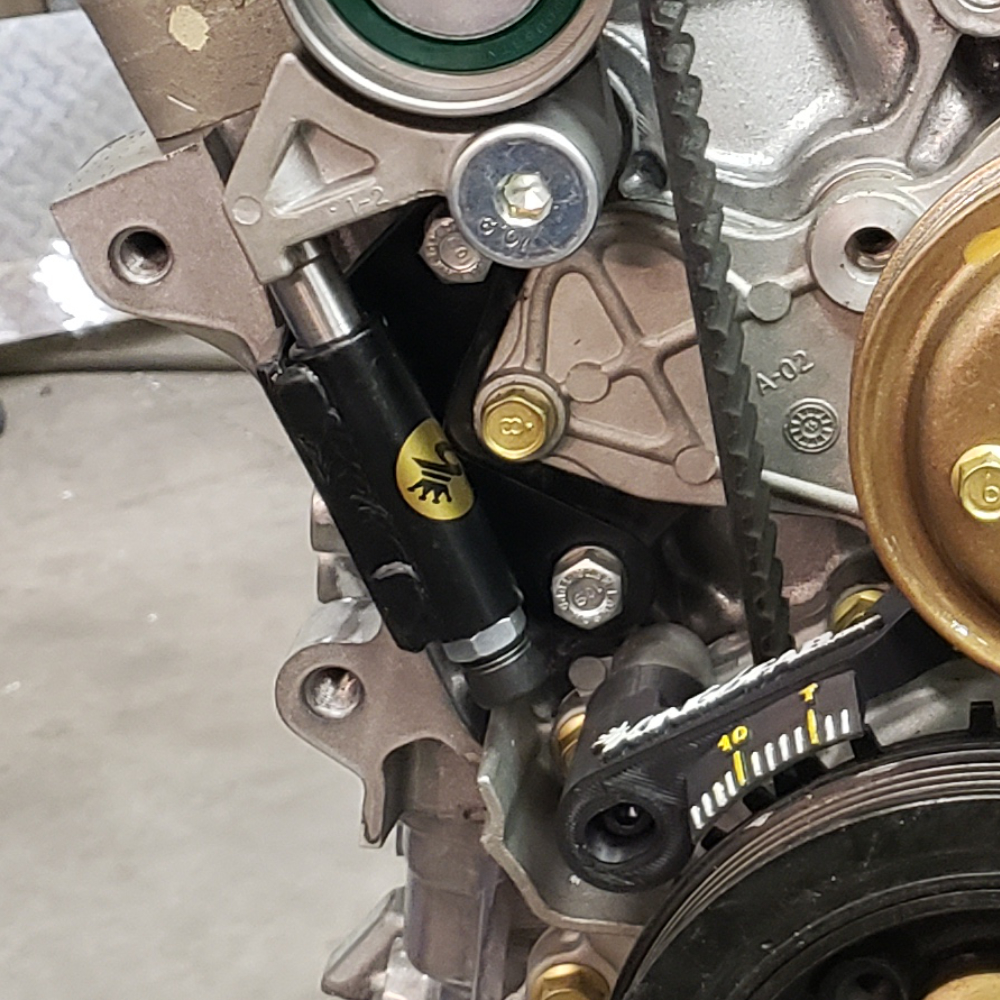

  • Part of the timing belt cover can be cut away for future adjustments if needed (pictured) or leave the covers off entirely.
  • If removing the covers entirely, see our timing mark bracket to retain the ability to properly set the timing.



Design

Made to Order
Engine

KLDE, KLG4, KLZE
Model Year

1993, 1994, 1995, 1996, 1997
Vehicle

Ford Probe, Mazda 626, Mazda Mx3, Mazda Mx6

Specifications



  • The bracket body of the tensioner is Plasma CNC cut from 3/16 A36 steel and press bent into shape.
  • The tubular body of the tensioner is machined cold roll round with 3/8-24 threads on end.
  • The anvil rod of the tensioner is polished cold roll round.
  • The drive bolt is a 12-point 3/8-24 hardened steel oxide coated flanged screw.

Directions

This guide assumes you have already gone through the process of removing your OEM Timing belt tensioner.      Start by fully compressing the King6fab adjustable timing belt tensioner to its lowest level, this is done by loosening the jam nut and turning the bolt to its lowest point.   From here you can mount the tensioner on the engine.

Once the tensioner is mounted to the engine, proceed to adjust the tension on the belt by tightening the bolt. Its best to tighten the belt to a point that the crank shaft can be rotated without the belt slipping on the cams.  Rotate the engine a few times, now check the deflection on the belt, on average, 3/8″ of the piston of the adjustable timing belt tensioner will be visible.

If you choose to put the timing belt covers back on your engine, its recommended to make cut aways so that the timing belt tensioner can be adjusted and inspected at regular service intervals. Making cut aways in the cover can be done easily with a Dremel, a mini reciprocating saw or a exacto knife.











Troubleshooting

  • Engine has Super Charger whine: Timing belt tensioner is too tight. Loosen the tensioner until the whine fades out.
  • Engine has chatter sound: Timing belt tensioner is to loose. Tighten the tensioner until the chatter fades out.

Fabrication Time

All King6fab parts are made to the order. I do not stock parts, I only stock materials to make parts. When an order is placed, it is fabricated special for you.

Fabrication Time Terms & Conditions

Below are the average estimated times before an order is ready to ship.  This does not include shipping times.

Times are subject to change without notice.

Single Item Orders 2-3 Days
1-2 Item Orders 3-6 Days
Order placed on or day before weekend/holidays: 4-10 Days
2 or more Item Orders 6-15 Days

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Parts Fit the Following Vehicle’s:

1993-1997 Ford Probe V6 Models

1993-2001 Mazda 626 V6 Models

1993-1997 Mazda Mx6 V6 Models
