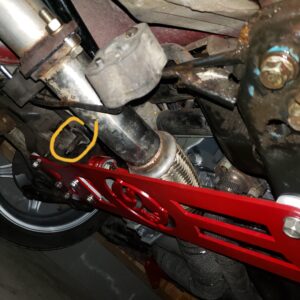

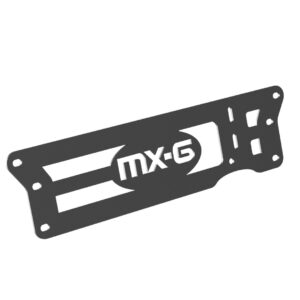

We have developed a rear cross member that cuts down on cost and makes installation & removal much easier.
This cross member is designed to be installed directly using the existing bolts from your OEM cross member.
Every cross member is precut to accept a lower mount that can be purchased with a cross member or a later date individually. Every cross member is designed to accept spacers that allow you to lower the cross member for exhaust down pipe clearance.

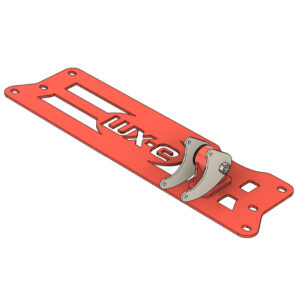

Every cross member is designed to accept a lower mount to add rigidity to the transmission, decreasing engine deflection and wheel hop.
Spacers:
Select Image to got to Spacers product page.
Spacers can be bought in steel or aluminum in various sizes, they also can be 3D Printed or download the template to choose a DIY material of your choice.
$50Original price was: $50.$30Current price is: $30.

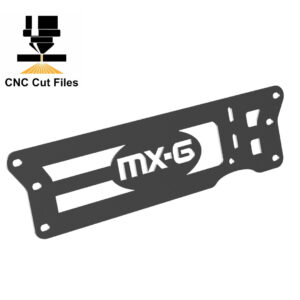

This is a downloadable package to fabricate our DIY Rear Cross Member with Lower Mount Option.
You will be receiving in the package a ZIP file download that includes the following:
PDF file of brackets layout
DXF file ready for cutting, including inner, outer, and bend profiles.
PDF Assembly guide for bend and welding locations.
Personal Use License
Our design files can be used to make your own finished physical product. For extended use beyond single personal use please contact us for production licensing. However, we ask that our files themselves not be resold, shared, or distributed in any way. This includes modifying our designs and redistributing, selling, or sharing the design.
You are not purchasing the right to resell, share and/or claim copyrights to the digital file you purchased. King6fab.com retains full ownership of the file for resale purposes.
You MAY
Use our digital resources for personal projects.
You may use these digital files for personal, non-commercial usage as a tool for producing your own finished product.
You may only modify these designs to create a finished, physical product.
You may NOT
Claim copyrights to the resources.
Resell, re-distribute, or share our digital resources as-is or where the resource can be extracted as-is. That includes sharing with friends and family. A personal use license is only valid for one person, so if you know someone who would also enjoy our resources, please direct them to the site where they can purchase their own copy.
Use our physical product photos and/or product descriptions and titles.
Use the resources in mass commercial production, defined as where you are working with a commercial production company to create something that will be mass produced and sold on a large scale.
Select options
This product has multiple variants. The options may be chosen on the product page

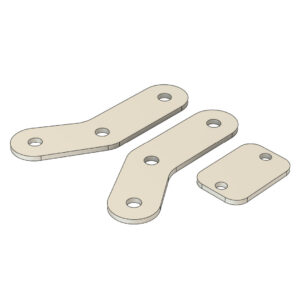

If you are purchasing or have already purchased a DIY Rear Cross member, we offer these spacers that can allow you to shim the cross member lower to allow for more downpipe clearance. All spacers are CNC cut from flat plate.
Material Options:
A36 Steel Plate
Pros: cost effective and strong
Cons: will rust without paint, not easily modified, heavy.
5052 Aluminum plate
Pros: lightweight, rust resistant, no paint required.
Cons: higher cost.
Thickness Options:
All thickness options are from solid plate. Such as 1/2″ thick is a solid piece made into a spacer, not multiple spacers totaling 1/2. For a lower cost solution in this example, (2) 1/4″ spacers can be combined to make 1/2″
Select options
This product has multiple variants. The options may be chosen on the product page

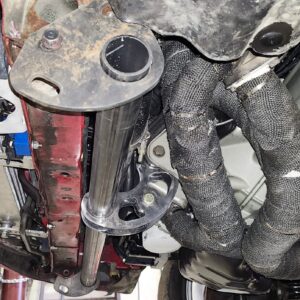

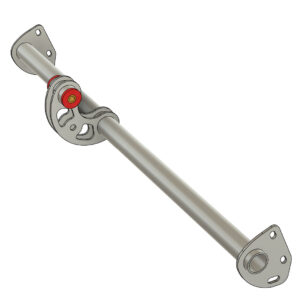

The DIY Front Cross Member was designed for the average novice with general welding skills. This cross member is necessary if your adding a turbo to your KLDE engine or just looking for a clean-up of the engine bay. The cross member design features shortened end brackets with larger elongated holes for easy installation. The end bracket design features 1.75ID cut holes that allow a 1.75OD tube to be slid thru for easy mockup. A built in Prothane Polyurethane bushing (90 duro) allows for a quick, inexpensive install that allows for extra clearance of turbo hot & cold pipes. Added to the end bracket’s is towing loops for easy tow strap placement, allowing your vehicle to be pulled without bumper damage.
We supply the difficult to design CNC cut parts, you supply tubing of your choice. ERW tubing is inexpensive and available most anywhere. DOM Tubing is much stronger and can be found in many thickness’s. This is an ideal choice for international buyers as these parts can ship in a flat rate box. The easiest way to fabricate this setup is to mount the end brackets to your vehicle, measure the inside dimensions of the brackets, cut your tube to those dimensions and tack weld it in place. Then attach the polyurethane bushing assembly to the motor mount bracket, measure from your tube to the bushing, and tack weld that in place. Once all parts are tack welded, remove the assembly and finish welding.
Features:
This item includes all the CNC cut metal parts to fabricate a front cross member.
All materials are deburred, wire wheeled and/or bead blasted prior to shipping.
(2) Outer mounting brackets cut for 1.75″ OD Tubing
(2) Motor mount brackets (your style choice) cut for 1.75″ OD Tubing
(1) Outer sleeve for polyurethane bushing
(1) Polyurethane Bushing with inner sleeve.
Not Included:
Tubing – You will need Approx. 43inches of 1.75″ OD Tubing to make this cross member.
Why isn’t tubing included? generally the tubing is inexpensive from a local metal supplier, but due to the length of tubing required, shipping the tubing is excessively expensive.
Select options
This product has multiple variants. The options may be chosen on the product page
